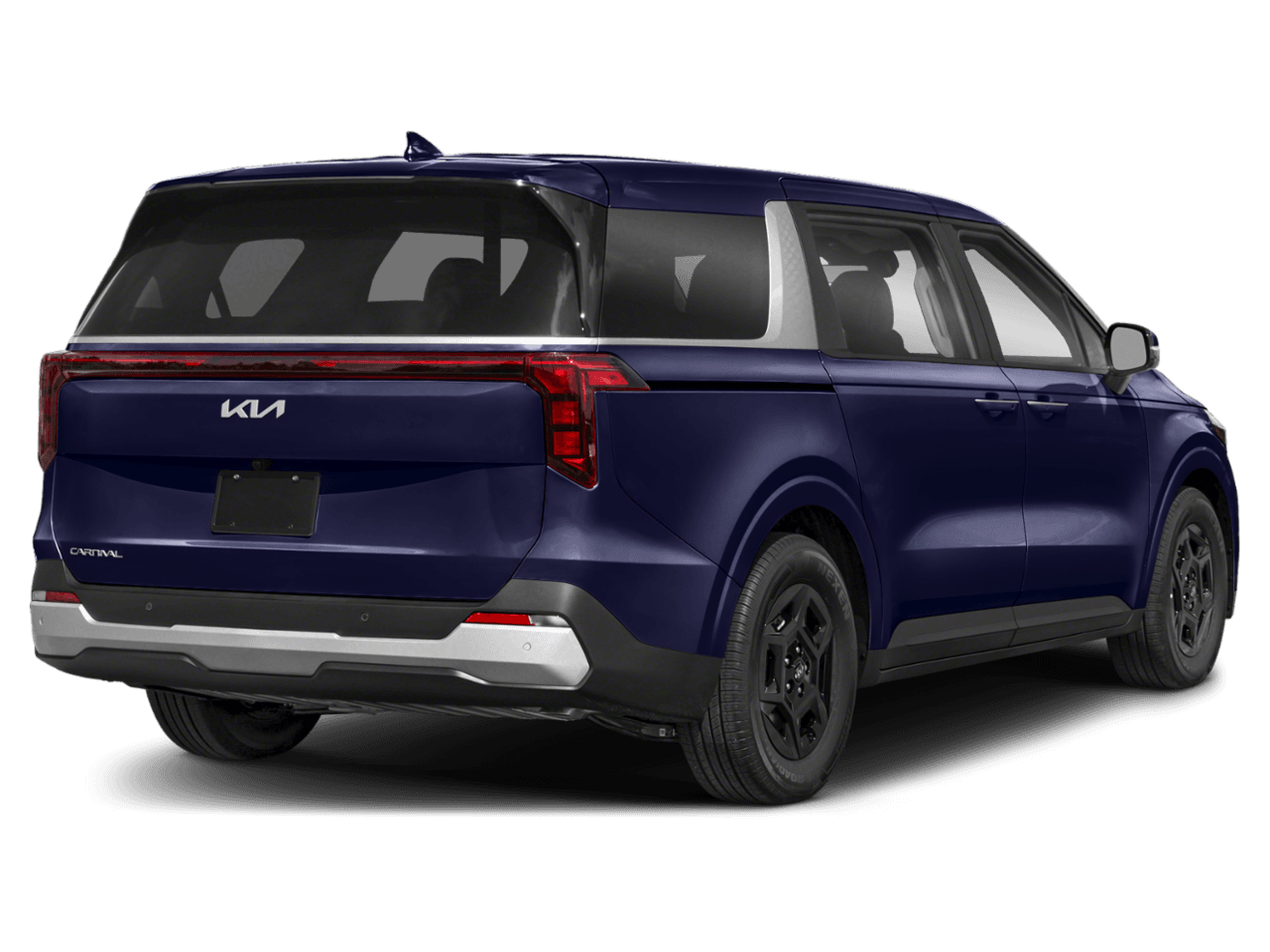

2025 Kia Carnival
LXS FWD
MSRP: $38,800
Previous
Next
Trims
2025 Kia Carnival
Standard Equipment
2025 Kia Carnival Available Options
- Flare Red
- Deep Chroma Blue
- Panthera Metal
- Aurora Black Pearl
- Snow White Pearl

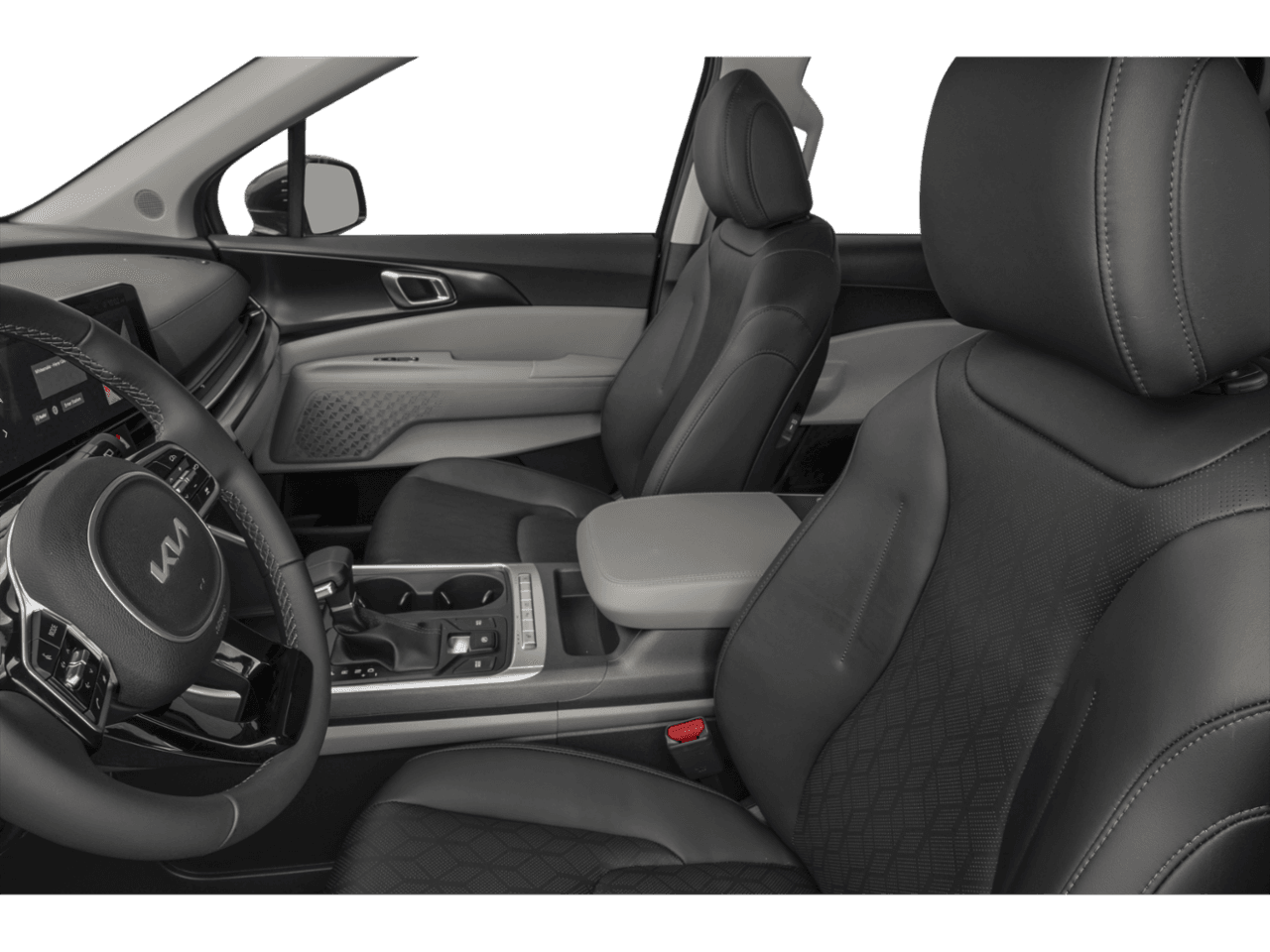

- Taupe/Off-Black, Artificial Leather Seat Trim
- Trailer Prewire Harness
- Tow Hitch (PNP), (PIO)
- Wheel Locks, (PIO)
- Mud Guards, (PIO)
- EC Mirror w/HomeLink, (PIO)
- Cargo Mat, (PIO)
- All Weather Mats (8-Passenger), (PIO)
- Carpeted Floor Mats (8-Passenger), (PIO)
- Cargo Net (CN), (PIO)
- Cargo Tray, (PIO)
2025 Kia Carnival Consumer Information
2025 Kia Carnival Technical Specifications
- Body Style: Mini-van, Passenger
- Tons/yr of CO2 Emissions @ 15K mi/year: 8.3
- EPA Classification: Minivans 2WD
- EPA Greenhouse Gas Score: 4.0
- Wt Distributing Hitch – Max Trailer Wt.: 3500 lbs
- Wt Distributing Hitch – Max Tongue Wt.: 350 lbs
- Trans Type: 8
- Trans Description Cont.: Automatic w/OD
- Reverse Ratio (:1): 3.42
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Drivetrain: Front Wheel Drive
- First Gear Ratio (:1): 4.81
- Second Gear Ratio (:1): 2.90
- Third Gear Ratio (:1): 1.86
- Fourth Gear Ratio (:1): 1.42
- Fifth Gear Ratio (:1): 1.22
- Sixth Gear Ratio (:1): 1.00
- Final Drive Axle Ratio (:1): 3.51
- Seventh Gear Ratio (:1): 0.80
- Eighth Gear Ratio (:1): 0.65
- SAE Net Horsepower: 287
- SAE Net Torque: 260
- EPA Fuel Economy Est – Hwy: 26 MPG
- EPA Fuel Economy Est – City: 18 MPG
- Fuel Economy Est-Combined: 21 MPG

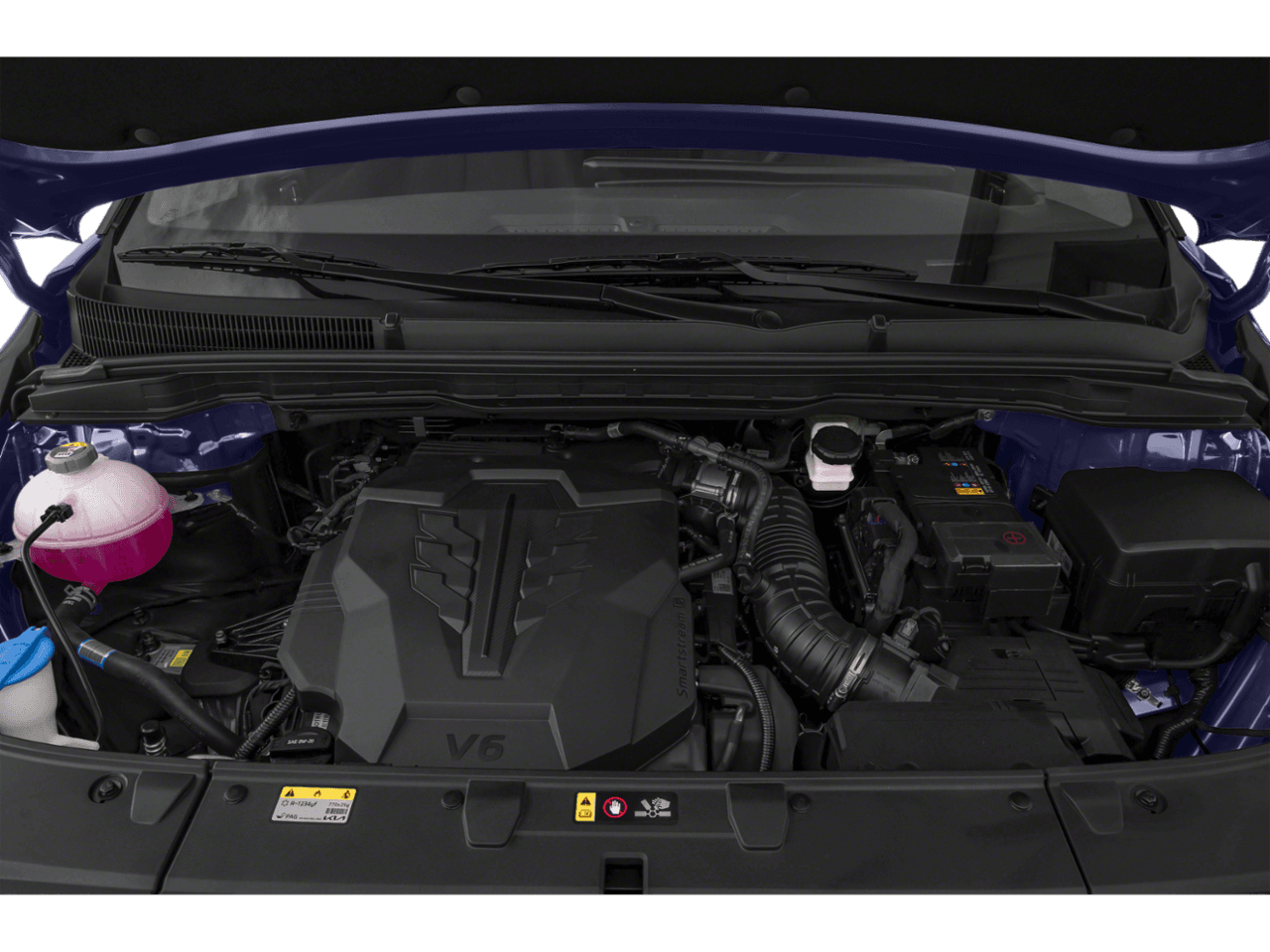

- Engine Type: Regular Unleaded V-6
- Displacement: 3.5 L/212
- Fuel System: Port/Direct Injection
- SAE Net Horsepower @ RPM: 287 @ 6400
- SAE Net Torque @ RPM: 260 @ 5000
- Fuel Tank Capacity, Approx: 19 gal
- Head Room (in): 40.9
- Leg Room (in): 41.1
- Passenger Capacity: 8
- Passenger Volume: 168.2 cu ft
- Front Head Room: 40.9 in
- Front Leg Room: 41.1 in
- Front Shoulder Room: 64.2 in
- Front Hip Room: 59.8 in

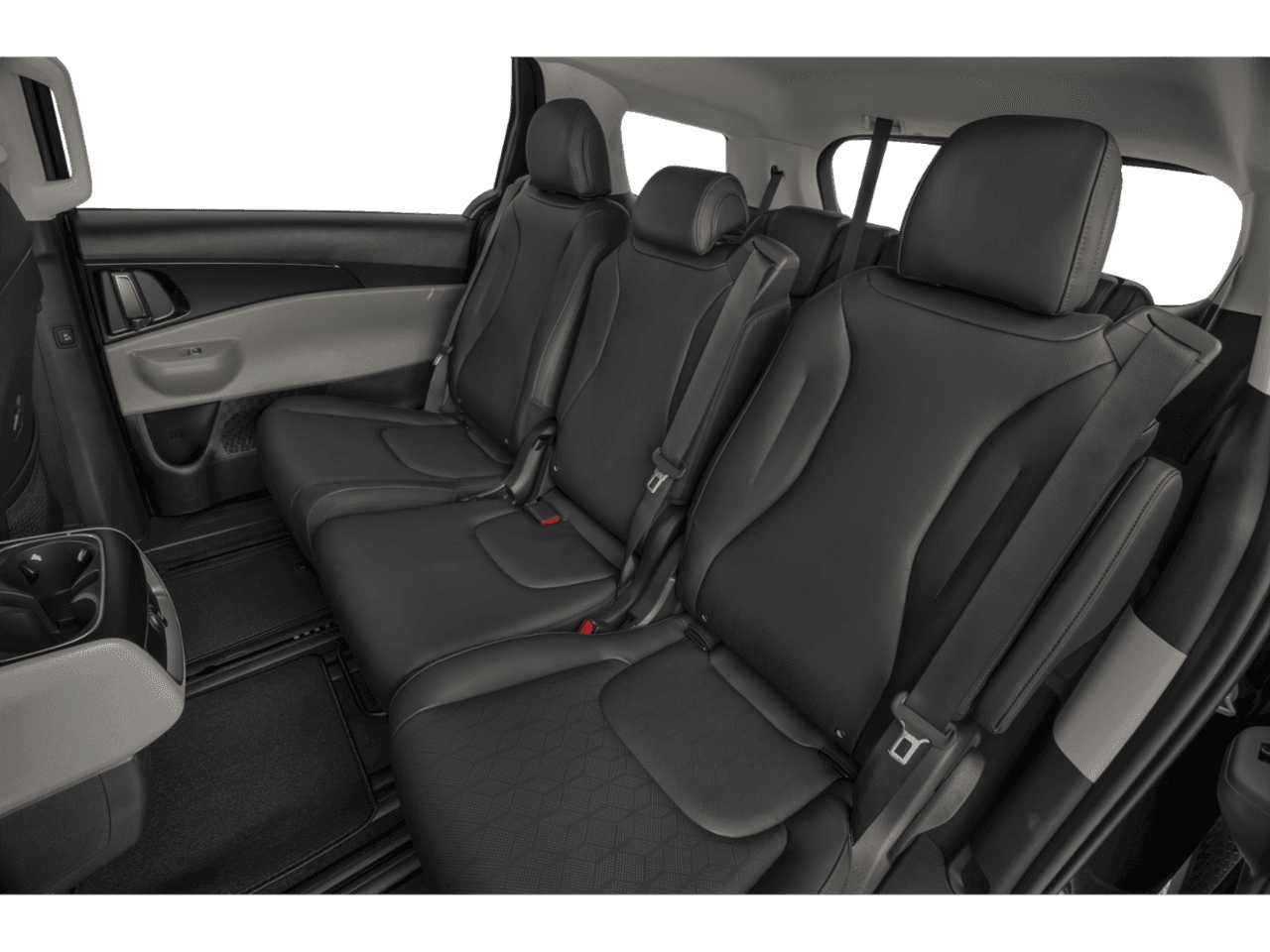

- Second Head Room: 39.5 in
- Second Leg Room: 40.5 in
- Second Shoulder Room: 63.2 in
- Second Hip Room: 66.4 in
- Third Head Room: 38.6 in
- Third Leg Room: 35.6 in
- Third Shoulder Room: 59.5 in
- Third Hip Room: 50.4 in
- Fuel Economy Est-Combined: 21
- Cruising Range – City: 342.00 mi
- Cruising Range – Hwy: 494.00 mi
- Base Curb Weight: 4630 lbs
- Dead Weight Hitch – Max Trailer Wt.: 3500 lbs
- Dead Weight Hitch – Max Tongue Wt.: 350 lbs
- Turning Diameter – Curb to Curb: 37.7 ft
- Front Tire Size: P235/65HR17
- Rear Tire Size: P235/65HR17
- Spare Tire Size: Compact
- Front Wheel Size: 17 X 6.5 in
- Rear Wheel Size: 17 X 6.5 in
- Spare Wheel Size: Compact in
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Spare Wheel Material: Steel

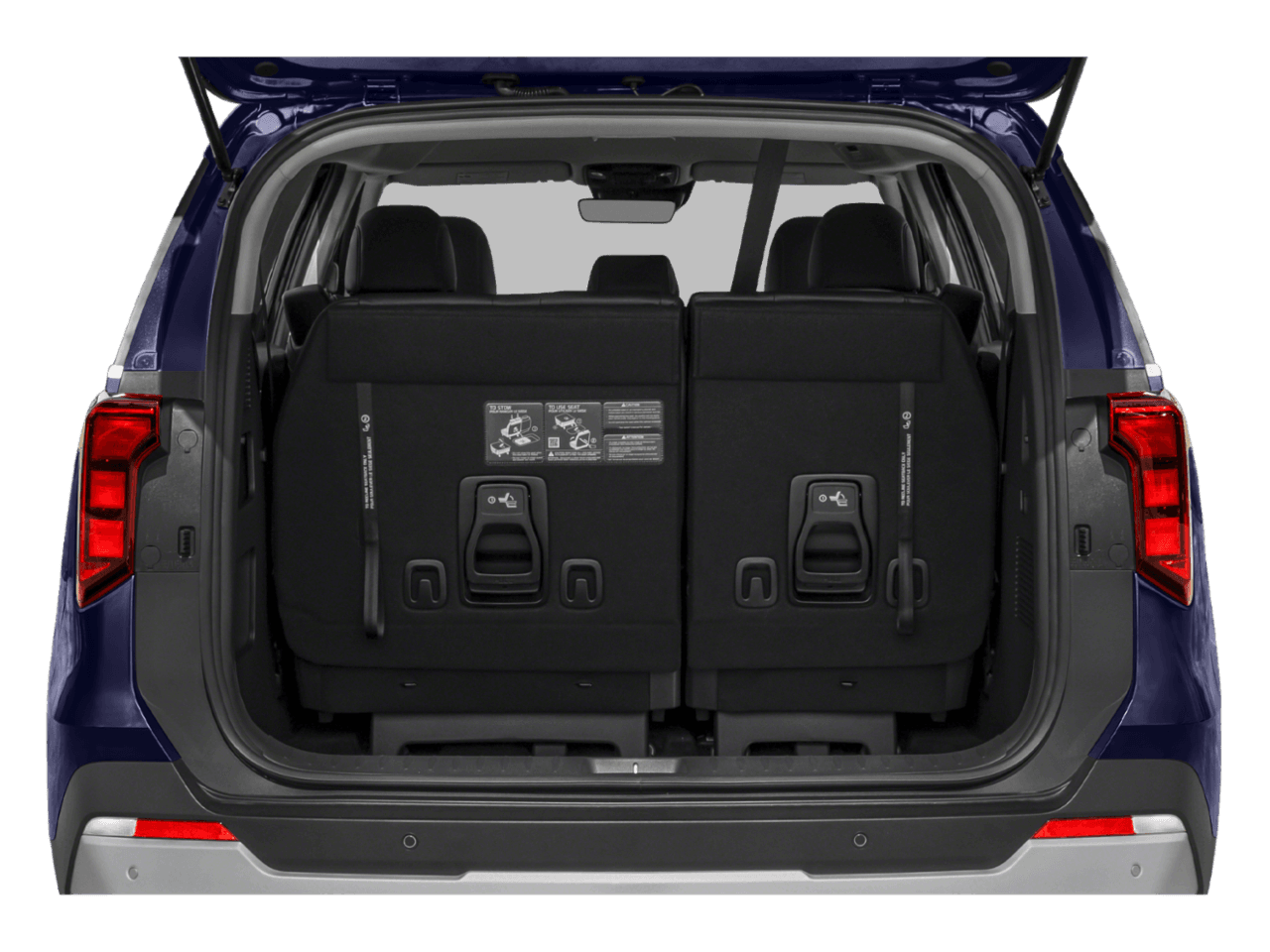

- Cargo Volume to Seat 1: 145.1 cu ft
- Cargo Volume to Seat 2: 86.9 cu ft
- Cargo Volume to Seat 3: 40.2 cu ft
- Suspension Type – Front: Strut
- Suspension Type – Rear: Multi-Link
- Suspension Type – Front (Cont.): Strut
- Suspension Type – Rear (Cont.): Multi-Link
- Steering Type: Rack-Pinion
- Steering Ratio (:1), Overall: N/A
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Front Brake Rotor Diam x Thickness: 12.8 in
- Rear Brake Rotor Diam x Thickness: 12.8 in
- Wheelbase: 121.7 in
- Length, Overall: 203 in
- Width, Max w/o mirrors: 78.5 in
- Height, Overall: 68.5 in
- Track Width, Front: 68.9 in
- Track Width, Rear: 68.9 in
- Min Ground Clearance: 6.8 in
- Cold Cranking Amps @ 0deg F (Primary): 660
- Maximum Alternator Capacity (amps): 180
