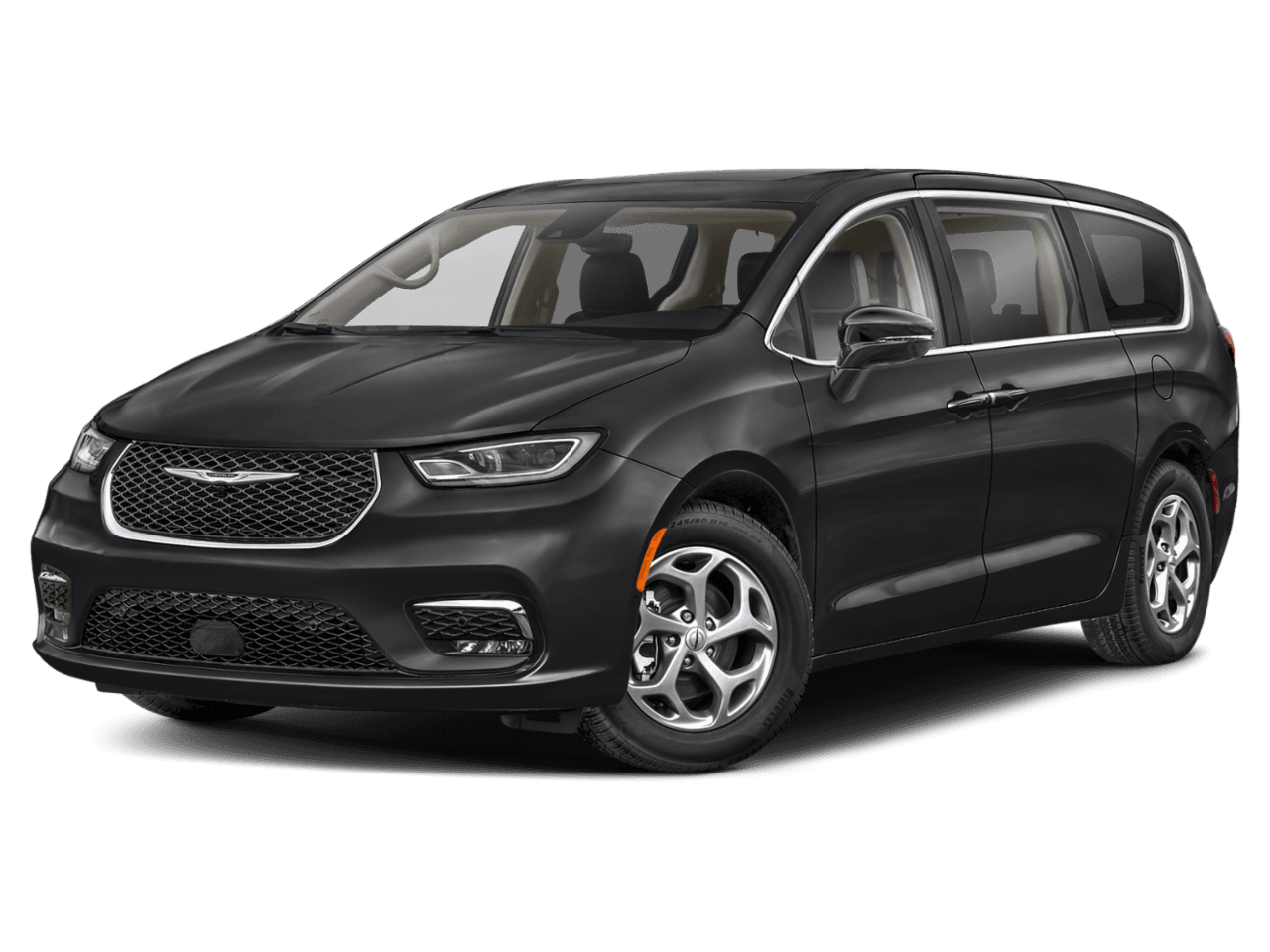

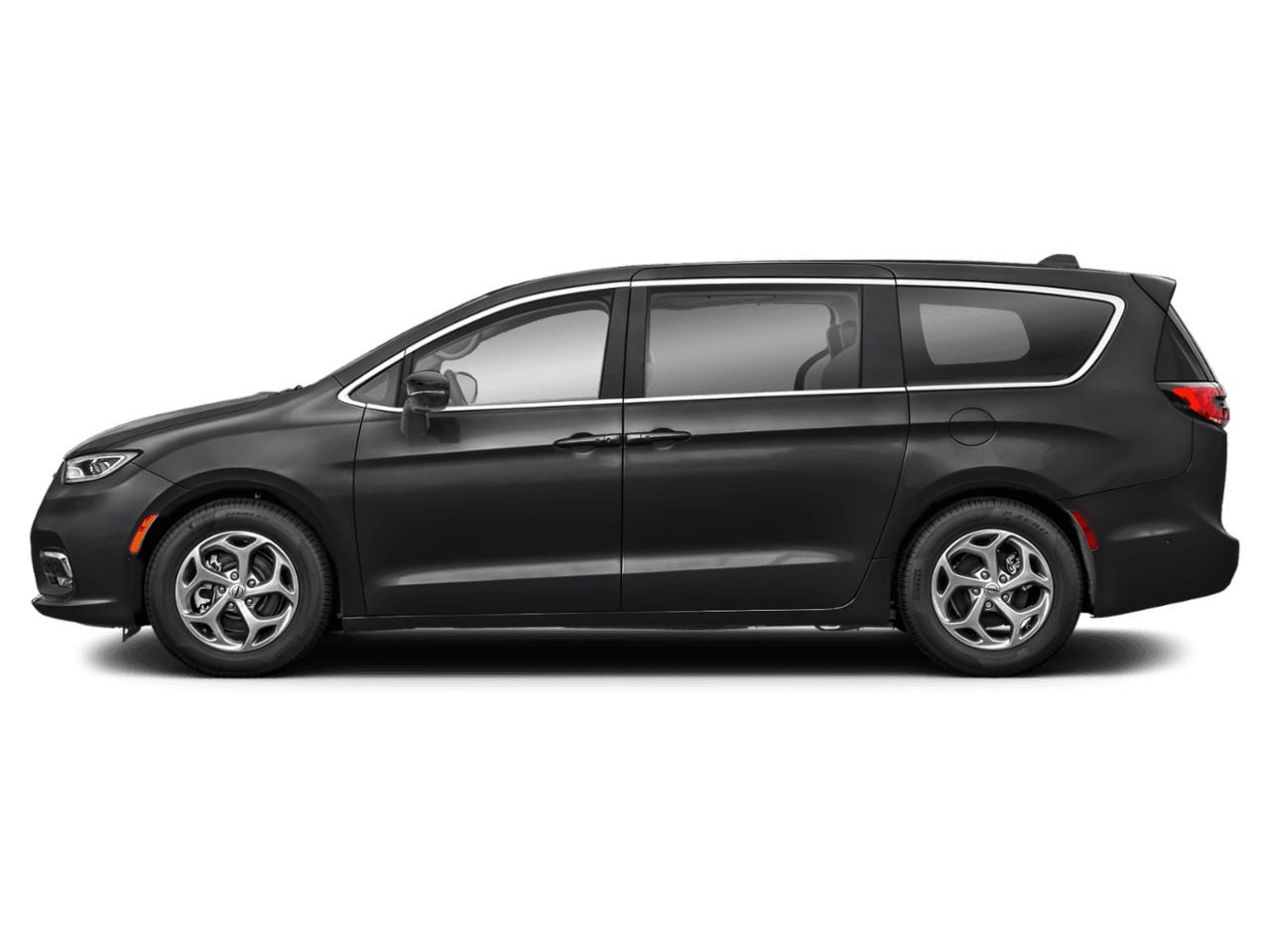

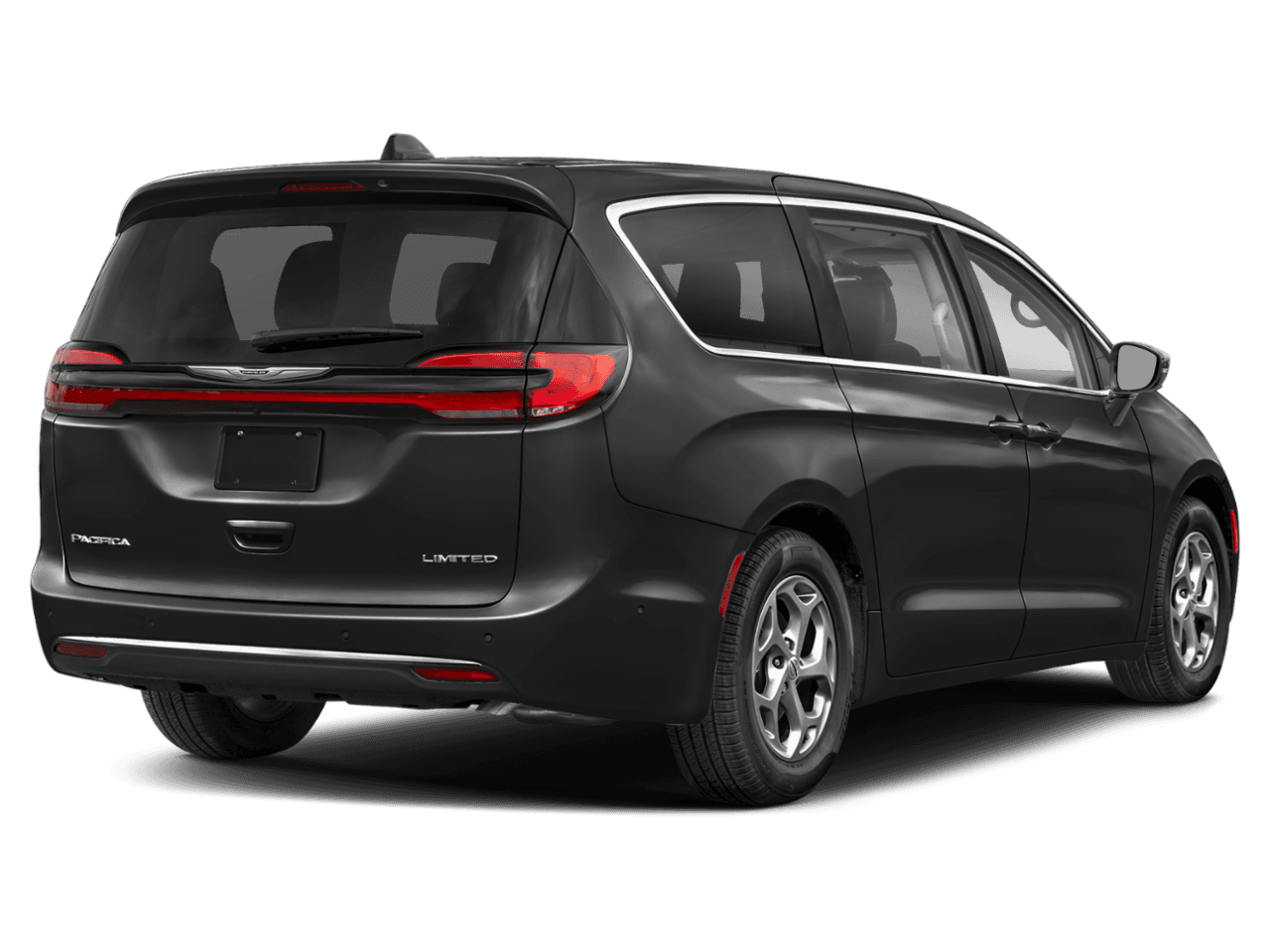

2025 Chrysler Pacifica
Pinnacle FWD
MSRP: $54,235
Previous
Next
Trims
2025 Chrysler Pacifica Select FWD
MSRP: $42,450
2025 Chrysler Pacifica Limited FWD
MSRP: $49,570
2025 Chrysler Pacifica Pinnacle FWD
MSRP: $54,235
2025 Chrysler Pacifica Select AWD
MSRP: $45,445
2025 Chrysler Pacifica Limited AWD
MSRP: $52,565
2025 Chrysler Pacifica Pinnacle AWD
MSRP: $57,230
2025 Chrysler Pacifica Available Options
- Engine: 3.6L V6 24V VVT UPG I w/ESS, (STD)
- Transmission: 9-Speed 948TE Automatic, (STD)
- Quick Order Package 27S, -inc: Engine: 3.6L V6 24V VVT UPG I w/ESS, Transmission: 9-Speed 948TE Automatic
- Bright White Clearcoat
- Diamond Black Crystal Pearlcoat
- Ceramic Gray Clearcoat
- Fathom Blue Pearlcoat
- Red Hot Pearlcoat
- Sepia/Black, Premium Leather Trimmed Bucket Seats
- Trailer Tow Group, -inc: Hitch w/2″ Receiver, Trailer Sway Damping, 7 & 4 Pin Trailer Tow Wiring Harness
- MOPAR Splash Guards – Vehicle Set, -inc: Front Splash Guards, Rear Splash Guards
- Engine Block Heater
- MOPAR Wheel Locks (Dealer Installed)
- Manufacturer’s Statement of Origin
- MOPAR Paint Protection Film
- Destination Surcharge (Hawaii), (Regional)
2025 Chrysler Pacifica Consumer Information
2025 Chrysler Pacifica Technical Specifications
- Engine: 3.6L V6 24V VVT UPG I w/ESS
- (STD)
- Engine Type: 3.6L V6 24V VVT UPG I w/ESS
- SAE Net Horsepower: 287
- SAE Net Torque: 262
- EPA Fuel Economy Est – Hwy: 28 MPG
- EPA Fuel Economy Est – City: 19 MPG
- Fuel Economy Est-Combined: 22 MPG
- Engine Order Code: ERC
- Engine Type: Regular Unleaded V-6
- Displacement: 3.6 L/220
- Fuel System: Sequential MPI
- SAE Net Horsepower @ RPM: 287 @ 6400
- SAE Net Torque @ RPM: 262 @ 4000
- Fuel Tank Capacity, Approx: 19 gal
- Transmission: 9-Speed 948TE Automatic
- (STD)
- Drivetrain: Front Wheel Drive
- First Gear Ratio (:1): 4.71
- Second Gear Ratio (:1): 2.84
- Third Gear Ratio (:1): 1.91
- Fourth Gear Ratio (:1): 1.38
- Fifth Gear Ratio (:1): 1.00
- Sixth Gear Ratio (:1): 0.81
- Final Drive Axle Ratio (:1): 3.25
- Seventh Gear Ratio (:1): 0.70
- Eighth Gear Ratio (:1): 0.58
- Ninth Gear Ratio (:1): N/A
- Body Style: Mini-van, Passenger
- Tons/yr of CO2 Emissions @ 15K mi/year: 8.0
- EPA Classification: Minivans 2WD
- EPA Greenhouse Gas Score: 5.0
- Wt Distributing Hitch – Max Trailer Wt.: 3600 lbs
- Wt Distributing Hitch – Max Tongue Wt.: 360 lbs
- Trans Order Code: DFH
- Trans Type: 9
- Trans Description Cont.: Automatic w/OD
- Reverse Ratio (:1): 3.81
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Head Room (in): 38.4
- Leg Room (in): 41.1
- Passenger Capacity: 7
- Passenger Volume: 165 cu ft
- Front Head Room: 38.4 in
- Front Leg Room: 41.1 in
- Front Shoulder Room: 63.8 in
- Front Hip Room: 59 in
- Second Head Room: 38 in
- Second Leg Room: 39 in
- Second Shoulder Room: 63 in
- Second Hip Room: 64.8 in
- Third Head Room: 38.7 in
- Third Leg Room: 36.5 in
- Third Shoulder Room: 61.2 in
- Third Hip Room: 49.5 in
- Fuel Economy Est-Combined: 22
- Cruising Range – City: 361.00 mi
- Cruising Range – Hwy: 532.00 mi
- Base Curb Weight: 4521 lbs
- Dead Weight Hitch – Max Trailer Wt.: 3600 lbs
- Dead Weight Hitch – Max Tongue Wt.: 360 lbs
- Turning Diameter – Curb to Curb: 39.7 ft
- Front Tire Order Code: TP3
- Rear Tire Order Code: TP3
- Front Tire Size: P245/50HR20
- Rear Tire Size: P245/50HR20
- Front Wheel Size: 20 X 7.5 in
- Rear Wheel Size: 20 X 7.5 in
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Cargo Volume to Seat 1: 140.5 cu ft
- Cargo Volume to Seat 2: 87.5 cu ft
- Cargo Volume to Seat 3: 32.3 cu ft
- Suspension Type – Front: Strut
- Suspension Type – Rear: Trailing Arm
- Suspension Type – Front (Cont.): Strut
- Suspension Type – Rear (Cont.): Trailing Arm
- Steering Type: Rack-Pinion
- Steering Ratio (:1), Overall: N/A
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Front Brake Rotor Diam x Thickness: 13 in
- Rear Brake Rotor Diam x Thickness: 13 in
- Wheelbase: 121.6 in
- Length, Overall: 204.3 in
- Width, Max w/o mirrors: 79.6 in
- Height, Overall: 69.9 in
- Track Width, Front: 68.3 in
- Track Width, Rear: 68.3 in
- Min Ground Clearance: 5.1 in
- Cargo Box Width @ Wheelhousings: 48.8 in
- Cargo Box (Area) Height: 47.6 in
- Cold Cranking Amps @ 0deg F (Primary): 650
- Maximum Alternator Capacity (amps): 220
