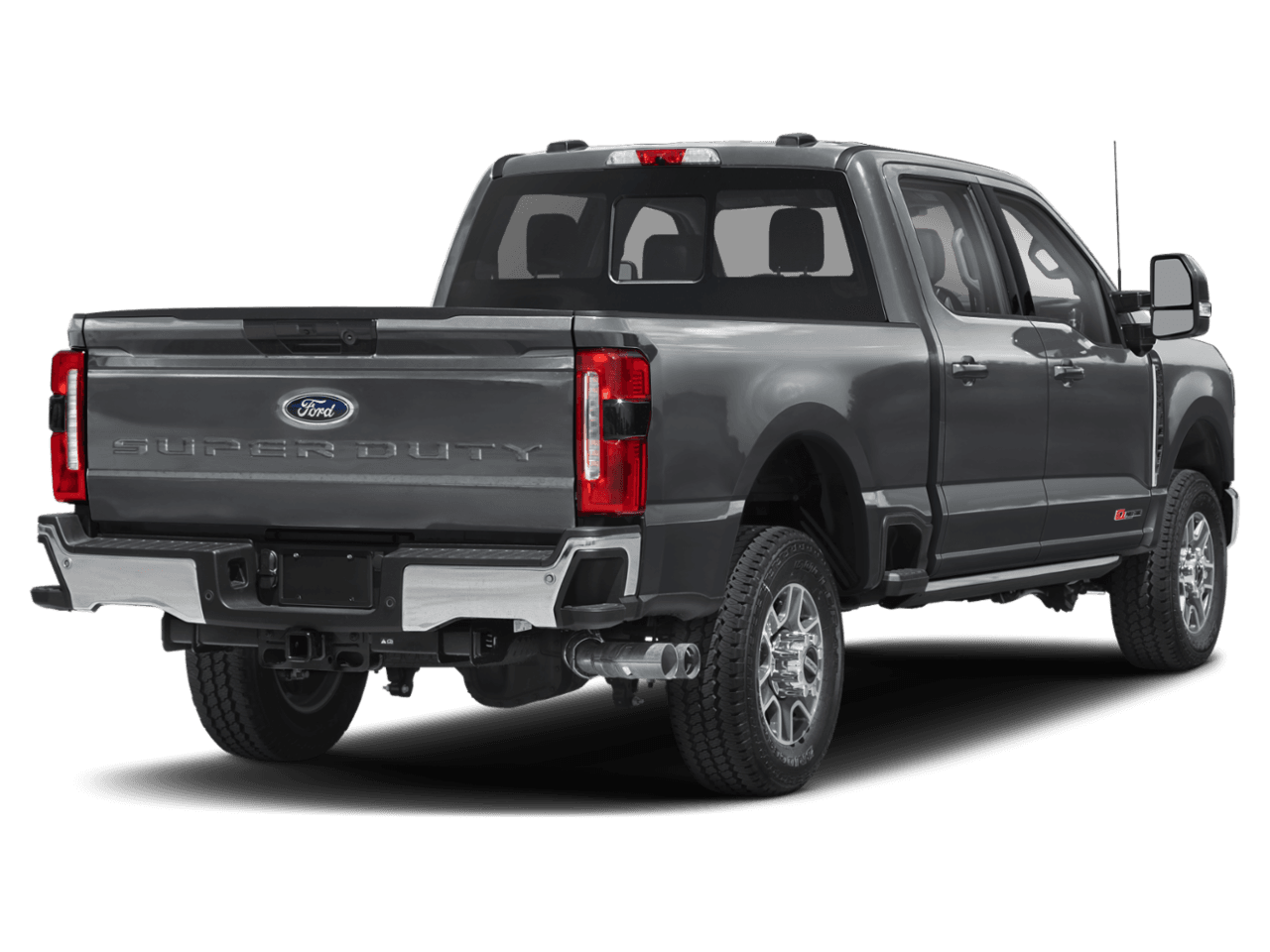

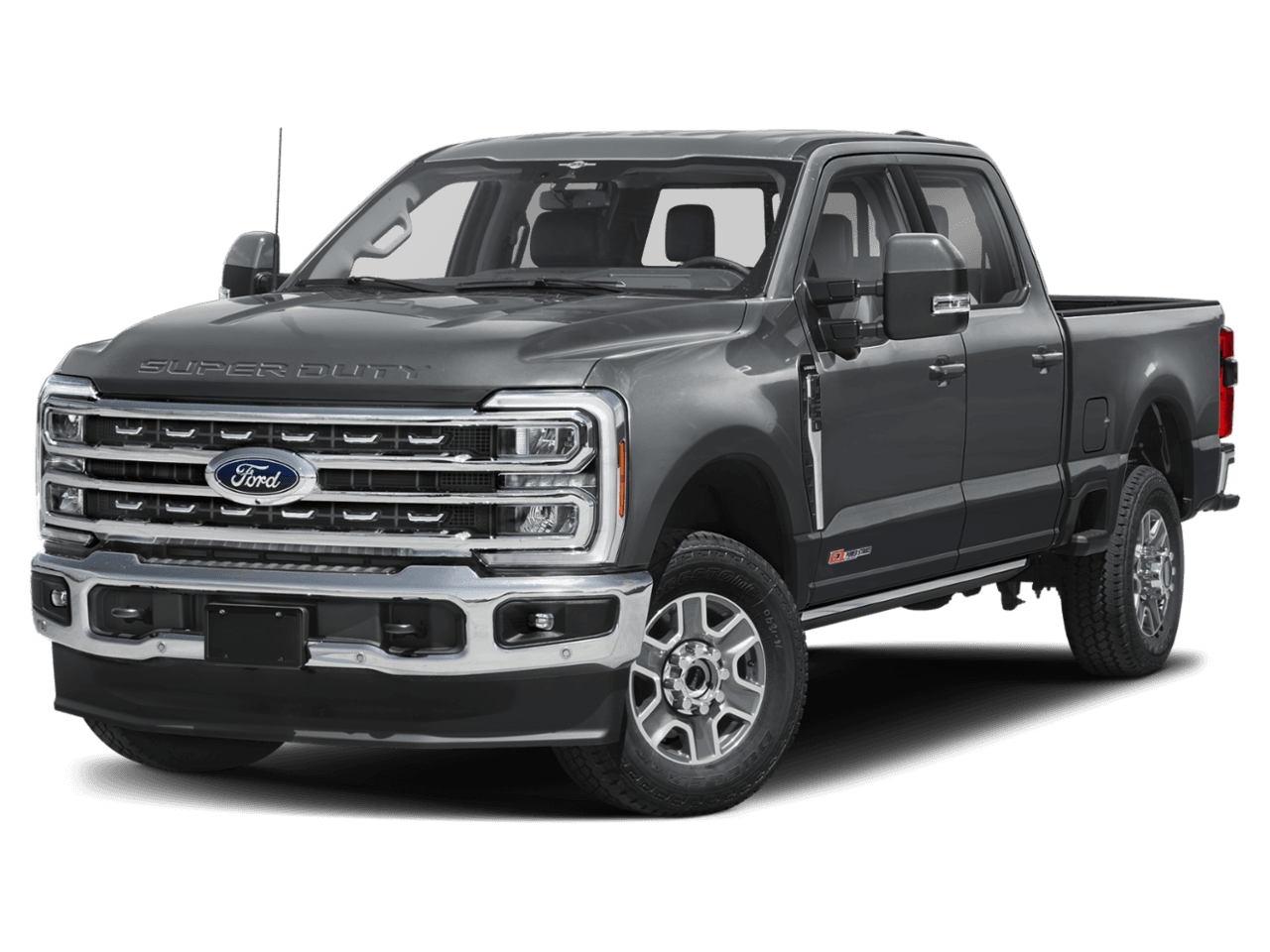

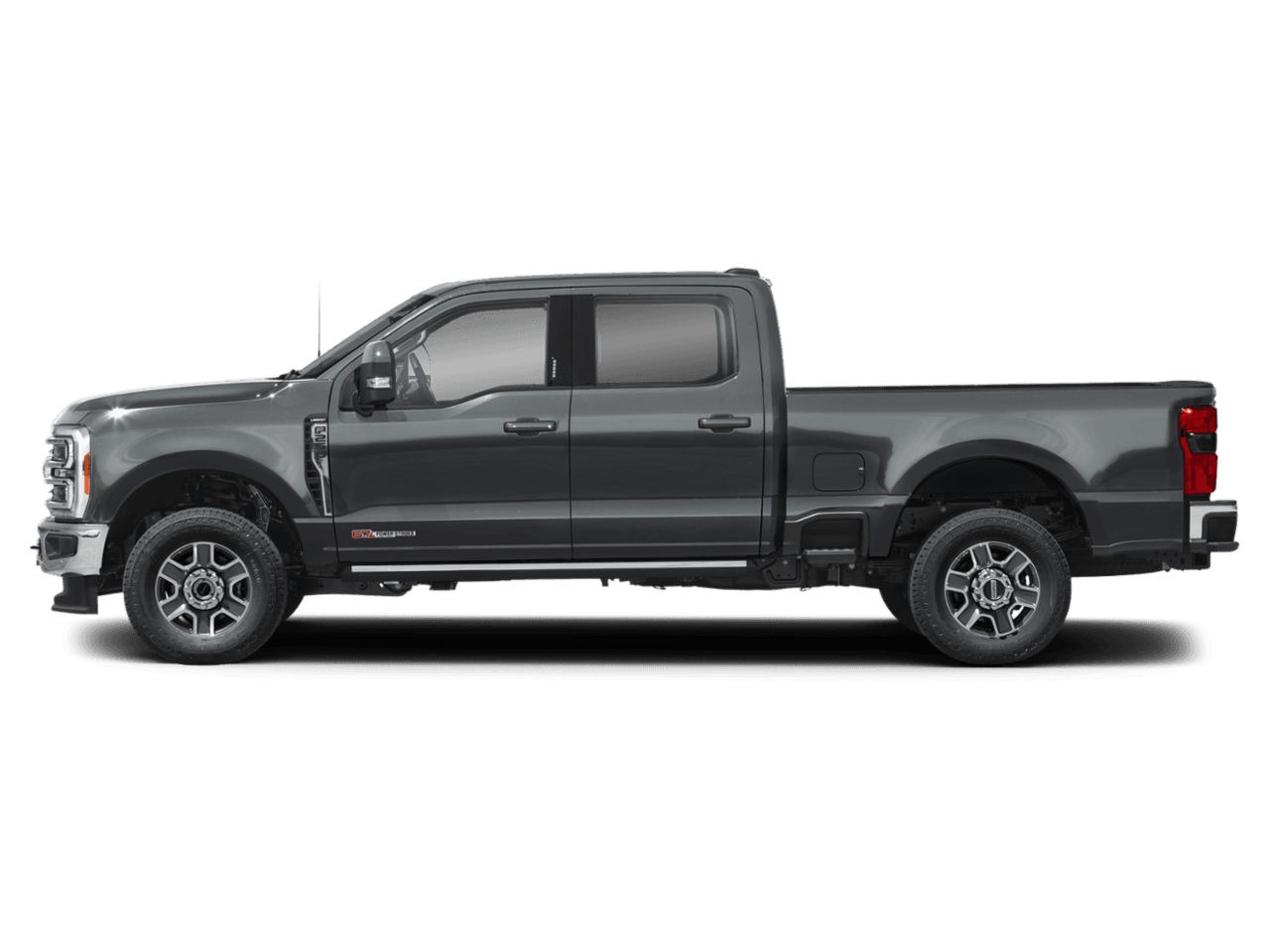

2024 Ford Super Duty F-250 SRW
LARIAT 4WD Crew Cab 8' Box
MSRP: $64,940
Previous
Next
Trims
2024 Ford Super Duty F-250 SRW XL 2WD Reg Cab 8' Box
MSRP: $44,970
2024 Ford Super Duty F-250 SRW XL 2WD SuperCab 6.75' Box
MSRP: $47,305
2024 Ford Super Duty F-250 SRW XL 2WD SuperCab 8' Box
MSRP: $47,505
2024 Ford Super Duty F-250 SRW XL 2WD Crew Cab 6.75' Box
MSRP: $48,760
2024 Ford Super Duty F-250 SRW XL 2WD Crew Cab 8' Box
MSRP: $48,960
2024 Ford Super Duty F-250 SRW XL 4WD Reg Cab 8' Box
MSRP: $47,760
2024 Ford Super Duty F-250 SRW XLT 4WD Reg Cab 8' Box
MSRP: $51,105
2024 Ford Super Duty F-250 SRW XL 4WD SuperCab 6.75' Box
MSRP: $50,095
2024 Ford Super Duty F-250 SRW XLT 4WD SuperCab 6.75' Box
MSRP: $53,755
2024 Ford Super Duty F-250 SRW LARIAT 4WD SuperCab 6.75' Box
MSRP: $62,410
2024 Ford Super Duty F-250 SRW XL 4WD SuperCab 8' Box
MSRP: $50,305
2024 Ford Super Duty F-250 SRW XLT 4WD SuperCab 8' Box
MSRP: $53,955
2024 Ford Super Duty F-250 SRW LARIAT 4WD SuperCab 8' Box
MSRP: $62,610
2024 Ford Super Duty F-250 SRW XL 4WD Crew Cab 6.75' Box
MSRP: $51,560
2024 Ford Super Duty F-250 SRW XLT 4WD Crew Cab 6.75' Box
MSRP: $55,510
2024 Ford Super Duty F-250 SRW LARIAT 4WD Crew Cab 6.75' Box
MSRP: $64,740
2024 Ford Super Duty F-250 SRW King Ranch 4WD Crew Cab 6.75' Box
MSRP: $76,975
2024 Ford Super Duty F-250 SRW Platinum 4WD Crew Cab 6.75' Box
MSRP: $77,865
2024 Ford Super Duty F-250 SRW Limited 4WD Crew Cab 6.75' Box
MSRP: $97,095
2024 Ford Super Duty F-250 SRW XL 4WD Crew Cab 8' Box
MSRP: $51,770
2024 Ford Super Duty F-250 SRW XLT 4WD Crew Cab 8' Box
MSRP: $55,715
2024 Ford Super Duty F-250 SRW
Standard Equipment
2024 Ford Super Duty F-250 SRW Available Options
- Engine: 7.3L 2V DEVCT NA PFI V8 Gas, (STD)
- Engine: 6.7L 4V OHV Power Stroke V8 Turbo Diesel B20, -inc: manual push-button engine-exhaust braking, Operator Commanded Regeneration (OCR) and intelligent oil-life monitor, 250 Amp Alternator, 34 Gallon Fuel Tank, 3.31 Axle Ratio, Dual 68 AH/65 AGM Batteries
- Engine: 6.7L High Output Power Stroke V8 Diesel, -inc: Turbo diesel B20, manual push-button engine-exhaust braking, Operator Commanded Regeneration (OCR) and intelligent oil-life monitor, 250 Amp Alternator, 34 Gallon Fuel Tank, 3.31 Axle Ratio, High Capacity 11.6″ Axle Upgrade Package, increased GCW and upgraded 11.6″ axle, Note: Salesperson’s portfolio or trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, See supplemental reference for vehicle height consideration, Dual 68 AH/65 AGM Batteries
- Transmission: TorqShift 10-Speed Automatic, -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road, (STD)
- Order Code 608A
- 3.73 Axle Ratio, (STD)
- 3.31 Axle Ratio
- Electronic-Locking w/3.31 Axle Ratio
- Electronic-Locking w/3.55 Axle Ratio
- Electronic-Locking w/3.73 Axle Ratio
- Electronic-Locking w/4.30 Axle Ratio
- Wheels: 18″ Bright Machined & Carbonized Gray Alum, -inc: Painted, (STD)
- Wheels: 20″ Dark Carbonized Gray Painted Aluminum, -inc: High-gloss, matte black hub covers/center ornaments
- Wheels: 20″ Chrome PVD Aluminum
- Wheels: 20″ Machined & Ebony Black High Gloss, -inc: Black premium painted aluminum, gloss black hub cover/center ornament
- Tires: LT275/70Rx18E BSW A/T (4), -inc: Spare may not be the same as road tire, (STD)
- Tires: LT275/65Rx20E BSW A/T, -inc: Spare may not be the same as road tire
- Agate Black Metallic
- Antimatter Blue Metallic
- Carbonized Gray Metallic
- Iconic Silver Metallic
- Oxford White
- Race Red
- Darkened Bronze Metallic
- Rapid Red Metallic Tinted Clearcoat
- Glacier Gray Metallic Tri-Coat
- Star White Metallic Tri-Coat
- Baja, Front Leather-Trimmed 40/Console/40 Seats, -inc: heated/ventilated seating, 8-way power driver and passenger seat (4-way power-adjustable track, 2-way power recline and 2-way power lumbar) 2-way adjustable driver/passenger headrests and easy entry driver’s seat w/memory
- Baja, Front Leather-Trimmed 40/20/40 Split Bench Seat, -inc: heated/ventilated seating, 8-way power driver and passenger seat (4-way power-adjustable track, 2-way power recline and 2-way power lumbar) 2-way adjustable driver/passenger headrests and easy entry driver’s seat w/memory
- Black Onyx, Front Leather-Trimmed 40/20/40 Split Bench Seat, -inc: heated/ventilated seating, 8-way power driver and passenger seat (4-way power-adjustable track, 2-way power recline and 2-way power lumbar) 2-way adjustable driver/passenger headrests and easy entry driver’s seat w/memory
- Black Onyx, Front Leather-Trimmed 40/Console/40 Seats, -inc: heated/ventilated seating, 8-way power driver and passenger seat (4-way power-adjustable track, 2-way power recline and 2-way power lumbar) 2-way adjustable driver/passenger headrests and easy entry driver’s seat w/memory
- F-250 >10K GVWR Package, (STD)
- Delete GVWR
- Lariat Ultimate Package, -inc: Wireless Charging Pad, Front Sensing System, Tailgate Step & Handle, Intelligent Adaptive Cruise Control w/Stop-and-Go, lane centering and speed sign recognition, Radio: B&O Unleashed Sound System by Bang & Olufsen, HD Radio w/14 speakers including subwoofer, Pro Trailer Hitch Assist, Ford Co-Pilot 360 2.0, rear view camera, reverse brake assist and reverse sensing system, Lane-Keeping System, lane-keeping alert, lane-keeping aid and driver alert, Pre-Collision Assist, Automatic Emergency Braking (AEB), pedestrian detection, forward collision warning, dynamic brake support and intersection assist, Post-Collision Braking, Automatic High Beam, BLIS w/Cross-Traffic Alert, trailer coverage, Upfitter Switches (6), Located in overhead console, 4-Way Adjustable Headrests, Head-Up Display, Power-Deployable Running Boards, Pro Trailer Backup Assist, trailer reverse guidance
- Camper Package, -inc: heavy service front springs (1 up upgrade above the spring computer selected as a consequence of options chosen, Not included if maximum springs have been computer selected as standard equipment) and slide-in camper certification, Note 1: Salesperson’s source book or Ford RV trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, Note 2: May result in deterioration of ride quality when vehicle is not equipped w/camper, Rear Stabilizer Bar & Auxiliary Springs
- Snow Plow/Camper Package, -inc: computer selected springs for snowplow application and slide-in camper certification, Note 1: Salesperson’s source book or Ford RV trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, Restrictions apply; see Supplemental Reference or Body Builders Layout Book for details, Expect firmer ride when vehicle is not equipped w/snowplow and/or camper, Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow and/or camper, Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see Body Builders Layout Book for details, Rear Stabilizer Bar & Auxiliary Springs, 190 Amp Alternator, w/99T,99M-inc: 250 Amp Alternator
- High Capacity 11.6″ Axle Upgrade Package, -inc: increased GCW and upgraded 11.6″ axle, Note: Salesperson’s portfolio or trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, See supplemental reference for vehicle height consideration
- Snow Plow Prep Package, -inc: computer selected springs for snowplow application, Note 1: Restrictions apply; see supplemental reference or body builders layout book for details, Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow, Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see body builders layout book for details, w/99T,99M-inc: Rapid-Heat Supplemental Cab Heater, w/99N-inc: 190 Amp Alternator
- FX4 Off-Road Package, -inc: Hill Descent Control, Off-Road Specifically Tuned Shock Absorbers, front/rear, Transfer Case & Fuel Tank Skid Plates, Unique FX4 Off-Road Box Decal
- Black Appearance Package, -inc: front and rear black Ford ovals, box side decal (4×4, FX4 or Tremor) and ebony black fender vent surround dark fender badge, Rear Wheel Well Liners (Pre-Installed), Ebony Black Painted Front Grille Bars, Ebony Black Painted Mirror Caps, Tough Bed Spray-In Bedliner, tailgate-guard, black box bed tie-down hooks and black bed attachment bolts, Body Color Front & Rear Bumpers, Wheels: 20″ Machined & Ebony Black High Gloss, Black premium painted aluminum, gloss black hub cover/center ornament, Tires: LT275/65Rx20E BSW A/T, Spare may not be the same as road tire, 6″ Ebony Black Angular Running Boards
- Sport Appearance Package, -inc: dark fender badge, Black Tow Hooks, Wheels: 20″ Dark Carbonized Gray Painted Aluminum, High-gloss, matte black hub covers/center ornaments, Body-Color Front & Rear Bumpers, Tires: LT275/65Rx20E BSW A/T, Spare may not be the same as road tire, Sport 4×4 Box Side Decal, Dark Painted Grille, Platform Running Boards, Chrome Exhaust Tip
- Chrome Package, -inc: 2 front chrome tow hooks, Unique Chrome Mirror Caps, Tires: LT275/65Rx20E BSW A/T, Spare may not be the same as road tire, Wheels: 20″ Chrome PVD Aluminum, Chrome Door Handles, 6″ Angular Bright Anodized Step Bars, Chrome Exhaust Tip
- Transmission Power Take-Off Provision, -inc: transmission mounted live drive and stationary mode PTO
- 250 Amp Alternator (Gas)
- Engine Block Heater, -inc: grille cover
- 410 Amp Dual Alternators, -inc: 250 Amp + 160 Amp
- Dual 68 AH/65 AGM Batteries
- Onboard Scales & Smart Hitch
- 5th Wheel/Gooseneck Hitch Prep Package, -inc: 5 pickup bed attachment points w/plugs, 1 frame under-bed cross member and 1 integrated 7-pin connector on driver’s side pickup bed wall, 5th wheel hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible w/the factory orderable 5th Wheel Hitch Kits (15K and 15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese – part #BC3Z-19D520-A (8ft box only), The prep package is also compatible w/Reese Signature Series 5th wheel hitch kits updated w/a new Leg Service Kit – part #BC3Z-A00A25-A (8ft box only), The 5th Wheel Hitch Kit (15K), 5th Wheel Hitch Kit (15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese – part #BC3Z-19D520-A is not released to the short box (6.75ft box), Note: the short pickup box provides less clearance between the cab and 5th wheel trailer compared to long box pickups, The receiver centerline of the hitch should be mounted at least 2″ forward from the rear-axle of the truck chassis,, When selecting a trailer and tow vehicle, it’s critical that this combination provide clearance between the cab and tow vehicle for turns up to and including 90 degrees, Failure to follow this recommendation could result in the trailer contacting the cab of the tow vehicle during tight turns, Gooseneck hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible only w/the factory orderable Gooseneck Hitch Kit (15J) or dealer-installed Ford customer accessories Gooseneck Hitch by Reese – part #BC3Z-19F503-A (8ft box and 6.75 ft box)
- Gooseneck Hitch Kit (Pre-Installed)
- 20K 5th Wheel Hitch Kit (Pre-Installed)
- Fixed 10,000 lbs GVWR Package
- Heavy-Service Front Suspension Package, -inc: heavy-service front springs (1 up upgrade above the spring computer selected as a consequence of options chosen, Not included if maximum springs have been computer selected as standard equipment), Recommended only on vehicles which will permanently utilize aftermarket equipment such as heavy-duty winches, brush guards or other apparatus which loads the front axle to the specified Gross Axle Weight Rating (GAWR), Note 1: Vehicle ride height will increase w/the addition of this package, Note 2: May result in deterioration of ride quality when vehicle is not equipped w/front end utility attachment
- Twin Panel Power Moonroof, -inc: map lights and moonroof switches
- Power-Deployable Running Boards
- Tailgate Step & Handle
- Drop-In Bedliner (Pre-Installed)
- Retractable Bed Side-Step (Pre-Installed)
- Retractable Rear Corner Bed Step (Pre-Installed)
- Front Splash Guards/Mud Flaps (Pre-Installed)
- Rear Splash Guards/Mud Flaps (Pre-Installed)
- Front License Plate Bracket, -inc: Standard in states requiring 2 license plates and optional to all others
- 6″ Angular Bright Anodized Step Bars
- LED Roof Clearance Lights
- Exterior Backup Alarm (Pre-Installed)
- Bed Mat (Pre-Installed)
- Tough Bed Spray-In Bedliner, -inc: tailgate-guard, black box bed tie-down hooks and black bed attachment bolts
- Front Wheel Well Liners (Pre-Installed)
- Rear Wheel Well Liners (Pre-Installed)
- Front & Rear Wheel Well Liners (Pre-Installed)
- Matte Black Aluminum Crossbed Toolbox (Pre-Installed), -inc: Weather Guard Defender Series
- Bright Premium Aluminum Crossbed Toolbox (Pre-Installed), -inc: Weather Guard model #127-0-02
- Radio: B&O Unleashed Sound System by Bang & Olufsen, -inc: HD Radio w/14 speakers including subwoofer
- Rapid-Heat Supplemental Cab Heater, -inc: 410 Amp Dual Alternators, 250 Amp + 160 Amp
- Interior Work Surface
- All-Weather Floor Mats, -inc: Doesn’t include carpet floor mats
- Carpet Delete, -inc: Replaced w/black vinyl flooring, *CREDIT*
- Vehicle Safe by Console Vault (Pre-Installed)
- Pickup Box Bed Side Storage
- Soft Folding Tonneau Pickup Box Cover (Pre-Installed)
- Hard Folding Tonneau Pickup Box Cover (Pre-Installed)
- Retractable Tonneau Pickup Box Cover (Pre-Installed)
- Upfitter Switches (6), -inc: Located in overhead console
- Ford Pro Upfit Integration System, -inc: programmable and connected upfit integration system, Recommended for snowplows, box delete (66D) and trucks that will utilize upfit aftermarket equipment
- Pro Power Onboard – 2kW, -inc: dual alternators 12V 250 Amp + 24V 150 Amp
- Max Recline Seats, -inc: 10-way power driver and 8-way power passenger and 4-way headrests
- COV Required, *PRICE TO FOLLOW*
- Priced DORA
- Individual Trailer TPMS, -inc: Shipped separately from the vehicle for dealer installation, 4 TPMS sensors, Note: Trailer TPMS sensors only compatible on wheels w/a .452″ diameter valve stem, (DIO)
- Wheel Locks, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- 12,000 lb Ford Performance Parts Winch by Warn, -inc: Shipped separately from the vehicle for dealer installation, wired remote controls, 70-foot high-tensile strength and abrasion-resistant synthetic line, (DIO)
- 2 Black Retractable Bed Hooks by Bull Accessories, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Smoke Side Window Deflector Kit (Set of 4), -inc: Low profile by Lund, Shipped separately from the vehicle for dealer installation, (DIO)
- Tailgate Lock by McGard, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Pivot LH Bed Storage Case by UnderCover, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Pivot RH Bed Storage Case by UnderCover, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Customer-Placed Trailer Camera, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Commercial USA Roadside Assistance Kit, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- First Aid Kit w/Ford Logo, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
- Road Side Assistance Kit w/Ford Logo, -inc: Shipped separately from the vehicle for dealer installation, (DIO)
2024 Ford Super Duty F-250 SRW Consumer Information
2024 Ford Super Duty F-250 SRW Technical Specifications
- Engine: 7.3L 2V DEVCT NA PFI V8 Gas
- (STD)
- Engine: 6.7L 4V OHV Power Stroke V8 Turbo Diesel B20
- Engine: 6.7L High Output Power Stroke V8 Diesel
- Engine Type: 7.3L 2V DEVCT NA PFI V8 Gas
- SAE Net Horsepower: 430
- SAE Net Torque: 485
- Engine Order Code: 99N
- Engine Type: Regular Unleaded V-8
- Displacement: 7.3 L/445
- Fuel System: Sequential MPI
- SAE Net Horsepower @ RPM: 430 @ 5500
- SAE Net Torque @ RPM: 485 @ 4000
- Engine Oil Cooler: None
- Fuel Tank Capacity, Approx: 48 gal
- Transmission: TorqShift 10-Speed Automatic
- -inc: SelectShift and selectable drive modes: normal, eco, slippery roads, tow/haul and off-road
- (STD)
- Drivetrain: Four Wheel Drive
- Gross Axle Wt Rating – Front: 5200 lbs
- Gross Axle Wt Rating – Rear: 6340 lbs
- Reserve Axle Capacity – Front: 1163.00 lbs
- Reserve Axle Capacity – Rear: 3594.00 lbs
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Final Drive Axle Ratio (:1): N/A
- Transfer Case Gear Ratio (:1), High: N/A
- Transfer Case Gear Ratio (:1), Low: N/A
- Axle Type – Front: Non-Independent
- Axle Type – Rear: Rigid Axle
- Axle Capacity – Front: 6000 lbs
- Axle Capacity – Rear: 7280 lbs
- Axle Ratio (:1) – Front: 3.73
- Axle Ratio (:1) – Rear: 3.73
- Cab to Axle: 56.1 in
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Ninth Gear Ratio (:1): N/A
- Tenth Gear Ratio (:1): N/A
- Gross Axle Weight Rating: 11540.00 lbs
- Reserve Axle Capacity: 4757.00 lbs
- Body Style: Crew Cab Pickup – Long Bed
- Gross Combined Wt Rating: 23500 lbs
- Wt Distributing Hitch – Max Trailer Wt.: 16200 lbs
- Wt Distributing Hitch – Max Tongue Wt.: 1620 lbs
- Trans Order Code: 44G
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Reverse Ratio (:1): 4.70
- Transfer Case Model: Electronic
- Transfer Case Power Take Off: No
- Revolutions/Mile @ 45 mph – Front: 634
- Revolutions/Mile @ 45 mph – Rear: 634
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Overhang, Front: 38.2 in
- Ground to Top of Load Floor: 36.8 in
- Head Room (in): 40.8
- Leg Room (in): 43.9
- Passenger Capacity: 5
- Front Head Room: 40.8 in
- Front Leg Room: 43.9 in
- Front Shoulder Room: 66.7 in
- Front Hip Room: 62.5 in
- Second Head Room: 40.4 in
- Second Leg Room: 43.6 in
- Second Shoulder Room: 65.9 in
- Second Hip Room: 64.7 in
- Standard Weight – Front: 0.00 lbs
- Standard Weight – Rear: 0.00 lbs
- Base Curb Weight: 6783 lbs
- Curb Weight – Front: 4037 lbs
- Curb Weight – Rear: 2746 lbs
- Option Weight – Front: 0.00 lbs
- Option Weight – Rear: 0.00 lbs
- As Spec’d Curb Weight: 6783.00 lbs
- Dead Weight Hitch – Max Trailer Wt.: 5000 lbs
- Dead Weight Hitch – Max Tongue Wt.: 500 lbs
- Turning Diameter – Curb to Curb: 57.8 ft
- Curb Weight: 6783.00 lbs
- Total Option Weight: 0.00 lbs
- Gross Vehicle Weight Rating: 10600.00 lbs
- As Spec’d Payload: 3817.00 lbs
- Maximum Payload Capacity: 3817.00 lbs
- Maximum Trailering Capacity: 16200 lbs
- Spring Capacity – Front: 5200 lbs
- Spring Capacity – Rear: 6340 lbs
- Front Tire Capacity: 7180 lbs
- Rear Tire Capacity: 7180 lbs
- Cargo Volume: 78.5 cu ft
- Payload Weight Front: 0 lbs
- Payload Weight Rear: 0 lbs
- Fifth Wheel Hitch – Max Trailer Wt.: 16000 lbs
- Fifth Wheel Hitch – Max Tongue Wt.: 4000 lbs
- Front Tire Order Code: TDX
- Rear Tire Order Code: TDX
- Front Tire Size: LT275/70SR18
- Rear Tire Size: LT275/70SR18
- Spare Tire Size: Full-Size
- Front Wheel Size: 18 X 8 in
- Rear Wheel Size: 18 X 8 in
- Spare Wheel Size: Full-Size in
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Spare Wheel Material: Steel
- -inc: manual push-button engine-exhaust braking, Operator Commanded Regeneration (OCR) and intelligent oil-life monitor, 250 Amp Alternator, 34 Gallon Fuel Tank, 3.31 Axle Ratio, Dual 68 AH/65 AGM Batteries
- -inc: Turbo diesel B20, manual push-button engine-exhaust braking, Operator Commanded Regeneration (OCR) and intelligent oil-life monitor, 250 Amp Alternator, 34 Gallon Fuel Tank, 3.31 Axle Ratio, High Capacity 11.6″ Axle Upgrade Package, increased GCW and upgraded 11.6″ axle, Note: Salesperson’s portfolio or trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, See supplemental reference for vehicle height consideration, Dual 68 AH/65 AGM Batteries
- Maximum Alternator Capacity (amps): 190
- Cold Cranking Amps @ 0deg F (Primary): 750
- Cold Cranking Amps @ 0deg F (2nd): 750
- Suspension Type – Front: Other
- Suspension Type – Rear: Leaf
- Steering Type: Re-Circulating Ball
- Steering Ratio (:1), Overall: N/A
- Steering Ratio (:1), On Center: N/A
- Steering Ratio (:1), At Lock: N/A
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Front Brake Rotor Diam x Thickness: 14.3 in
- Rear Brake Rotor Diam x Thickness: 14.3 in
- Wheelbase: 176 in
- Length, Overall: 266.2 in
- Width, Max w/o mirrors: 80 in
- Height, Overall: 81.3 in
- Ground Clearance, Front: 8.5 in
- Ground Clearance, Rear: 8.5 in
- Body Length: 0.00 ft
- Cargo Box Length @ Floor: 98.1 in
- Cargo Box Width @ Top, Rear: 66.9 in
- Cargo Box Width @ Floor: 66.9 in
- Cargo Box Width @ Wheelhousings: 50.5 in
- Cargo Box (Area) Height: 21.1 in
- Tailgate Width: 60.5 in
