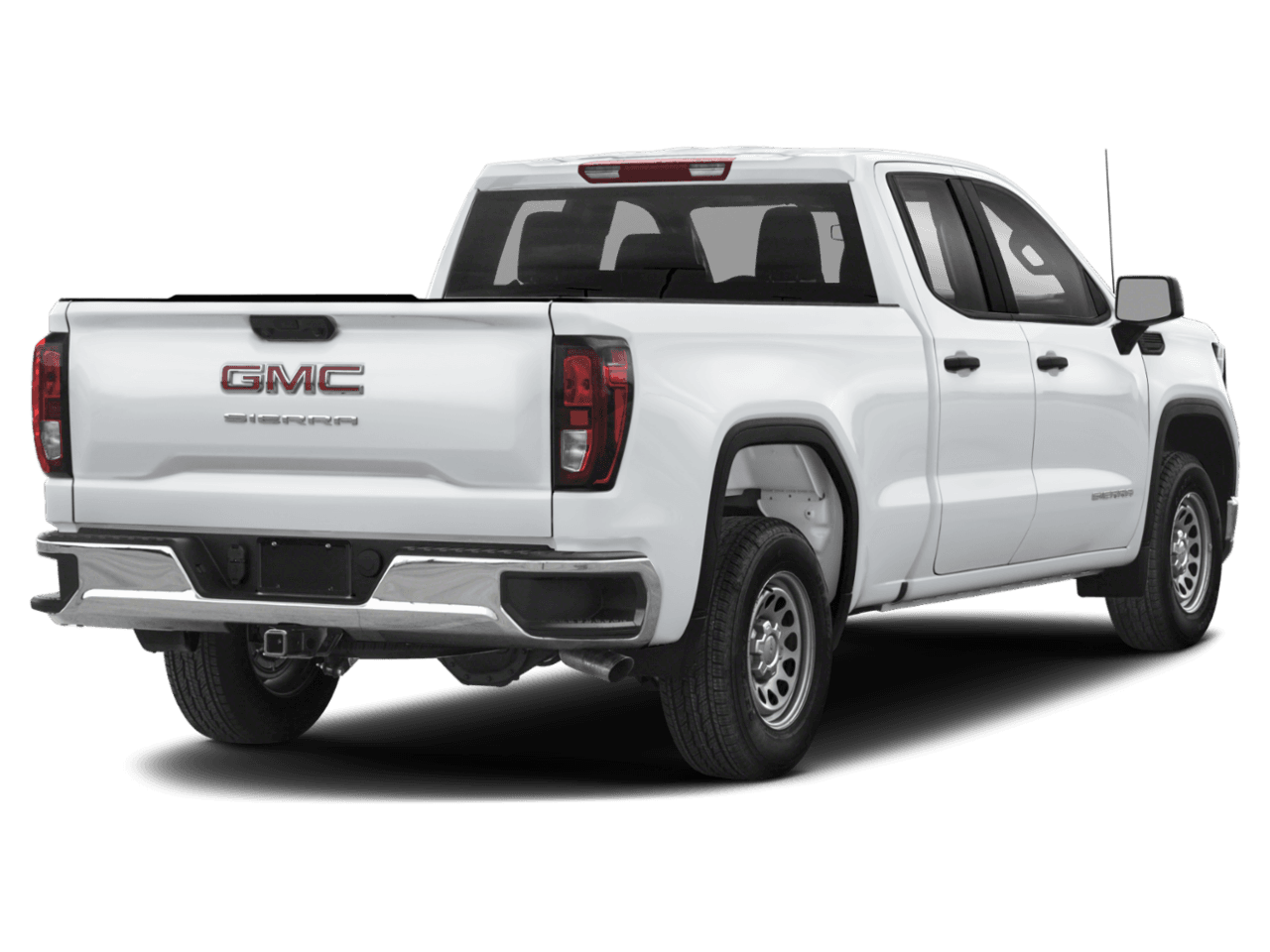

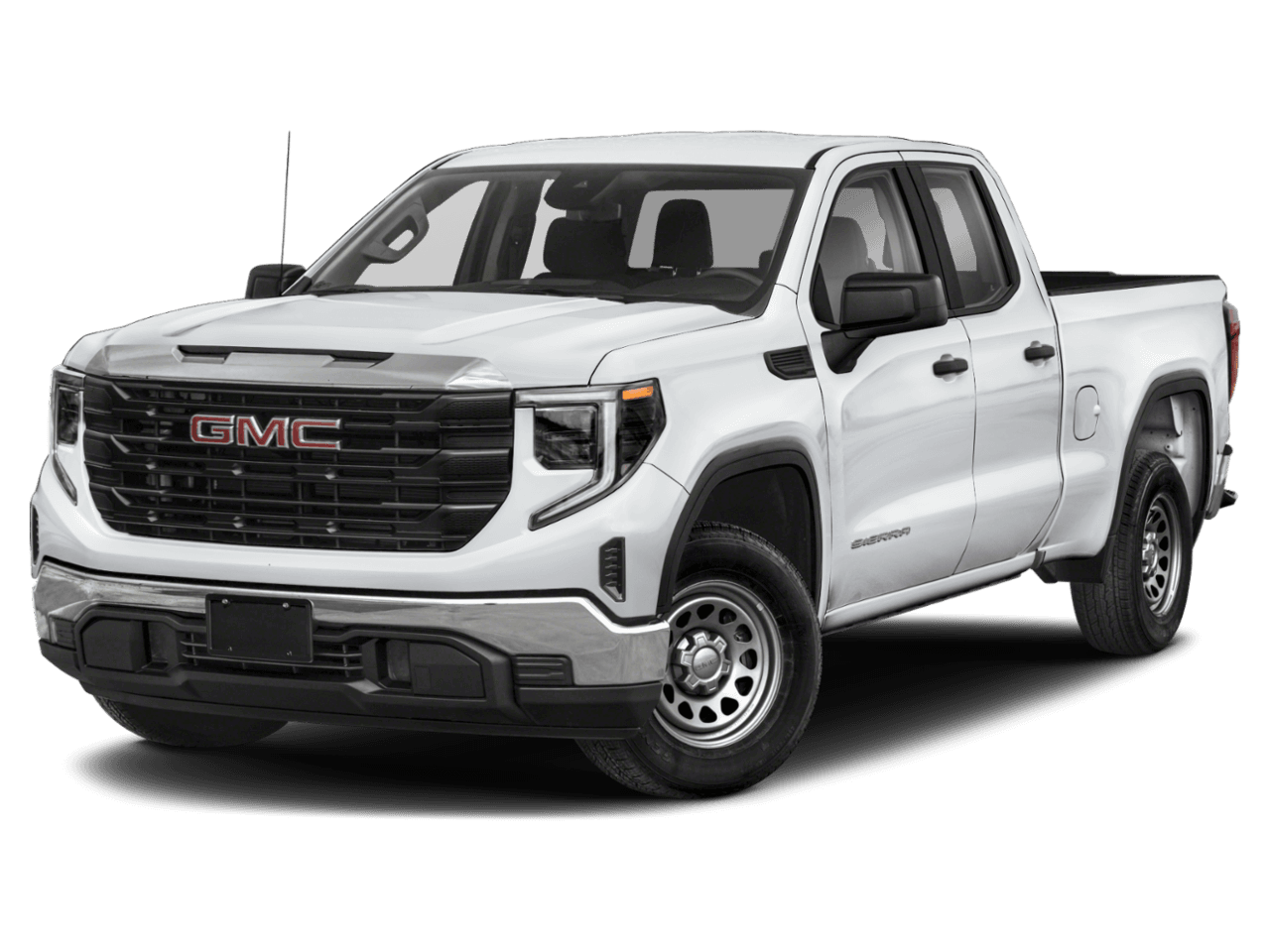

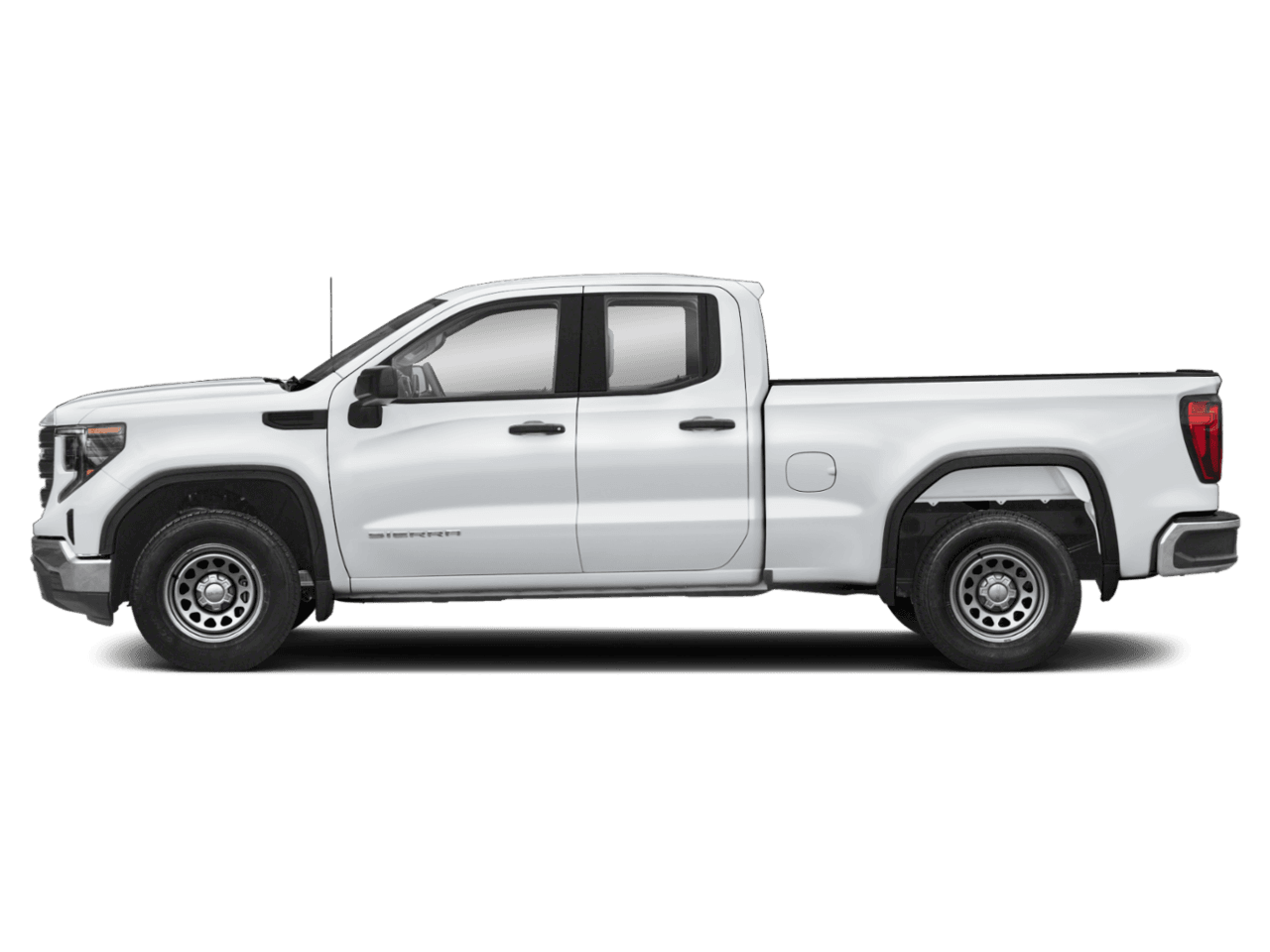

2023 GMC Sierra 1500

4WD Double Cab 147" Elevation w/3VL
MSRP: $0
Trims
2023 GMC Sierra 1500 Standard Equipment
  • Trailering Package includes trailer hitch, 7-pin and 4-pin connectors and (CTT) Hitch Guidance
  • GMC Pro Safety includes (UEU) Forward Collision Alert, (UE4) Following Distance Indicator, (UKJ) Front Pedestrian Braking, (TQ5) IntelliBeam, (UHX) Lane Keep Assist with Lane Departure Warning, and (UHY) Automatic Emergency Braking (Includes (T8Z) Buckle to Drive.)
  • Engine, 2.7L Turbo High-Output (310 hp [231 kW] @ 5600 rpm, 430 lb-ft of torque [583 Nm] @ 3000 rpm)
  • Transmission, 8-speed automatic, (Column shifter) electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (Standard and only available with (L3B) 2.7L Turbo High-Output engine.)
  • Rear axle, 3.42 ratio
  • Pickup bed
  • GVWR, 7000 lbs. (3175 kg)
  • Push Button Start
  • Automatic Stop/Start
  • Auto-locking rear differential
  • Transfer case, single speed, electronic Autotrac with push button control (4WD models only)
  • Suspension Package, High Capacity
  • Four wheel drive
  • Alternator, 220 amps
  • Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
  • Frame, fully-boxed, hydroformed front section
  • Recovery hooks, front, frame-mounted, Black
  • Cargo tie downs (12), fixed
  • Steering, Electric Power Steering (EPS) assist, rack-and-pinion
  • Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
  • Capless Fuel Fill
  • Exhaust, single outlet
  • Exhaust, aluminized stainless-steel muffler and tailpipe
  • Wheels, 20″ x 9″ (50.8 cm x 22.9 cm) 6-spoke High gloss Black painted aluminum
  • Tires, 275/60R20 all-season, blackwall
  • Tire, spare 255/80R17SL all-season, blackwall
  • Wheel, 17″ x 8″ (43.2 cm x 20.3 cm) full-size, steel spare
  • Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
  • Bumper, front, body-color lower
  • Bumper, rear body-color with corner steps
  • CornerStep, rear bumper
  • Grille (Body color header with gloss black mesh grille insert bars.)
  • Headlamps, LED projectors with Fade-on/Fade-off animation, LED turn signals and Daytime Running Lamps
  • IntelliBeam, automatic high beam on/off (Included and only available with (PDI) GMC Pro Safety.)
  • Fog lamps, LED
  • Taillamps, LED LED signature taillight and Fade-on/Fade-off animation, incandescent stop, turn and reverse light
  • Mirrors, outside heated power-adjustable
  • Glass, deep-tinted
  • Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
  • LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob
  • Tailgate, GMC MultiPro Tailgate with six functional load/access features
  • Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
  • Tailgate and bed rail protection caps, top
  • Door handles, body-color
  • Audio System, 13.4 ” diagonal Premium GMC Infotainment System with Google built in, includes color touch-screen, multi-touch display, AM/FM stereo Bluetooth streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings
  • SiriusXM with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the Platinum Plan for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the Platinum Plan you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental (“FDR”) use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
  • Audio system feature, 6-speaker system
  • Bluetooth for phone connectivity to vehicle infotainment system
  • Wireless phone projection, for Apple CarPlay and Android Auto
  • Steering wheel audio controls
  • Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
  • Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
  • Seat trim, Cloth
  • Seat adjuster, driver 10-way power including lumbar
  • Seat adjuster, passenger 4-way manual
  • Seating, heated driver and front outboard passenger
  • Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Double Cab model.)
  • Floor covering, color-keyed carpeting (Includes (B32) front floor mats and (B33) rear floor mats on Crew Cab and Double Cab models.)
  • Floor mats, rubberized-vinyl front
  • Floor mats, rubberized-vinyl rear
  • Steering column, manual Tilt-Wheel and telescoping
  • Steering wheel, wrapped
  • Steering wheel, heated
  • Driver Information Center, enhanced, 12.3″ diagonal reconfigurable multicolor digital display
  • GMC Premium information Display- 13.4″ diagonal Multicolor I touch screen
  • Compass, located in instrument cluster
  • Exterior Temperature Display, located in radio display
  • Brake lining wear indicator
  • Windows, power front, drivers express up/down
  • Window, power front, passenger express down
  • Windows, power rear, express down
  • Door locks, power
  • Keyless Open and Start includes remote keyless entry
  • Remote vehicle starter system
  • Cruise control, steering wheel-mounted
  • Theft-deterrent system, unauthorized entry
  • USB Ports, 2, Charge/Data ports located on instrument panel
  • Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
  • USB ports, (2) charge-only, rear
  • Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet)
  • Air conditioning, dual-zone automatic climate control
  • Air vents, rear
  • Defogger, rear-window electric
  • Mirror, inside rearview, manual tilt
  • Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
  • GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)
  • Automatic Emergency Braking (Included and only available with (PDI) GMC Pro Safety.)
  • Front Pedestrian Braking (Included and only available with (PDI) GMC Pro Safety.)
  • StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
  • Daytime Running Lamps, LED signature lighting
  • Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
  • OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
  • Hitch Guidance
  • HD Rear Vision Camera
  • Following Distance Indicator (Included and only available with (PDI) GMC Pro Safety.)
  • Forward Collision Alert (Included and only available with (PDI) GMC Pro Safety.)
  • Lane Keep Assist with Lane Departure Warning (Included and only available with (PDI) GMC Pro Safety.)
  • Seat Belt Adjustable Guide Loops, front row only
  • Buckle to Drive (Included and only available with (PDI) GMC Pro Safety.)
  • Tire Pressure Monitor System, auto learn includes Tire Fill Alert (does not apply to spare tire)
  • Rear Seat Reminder
2023 GMC Sierra 1500 Available Options
  • EMISSIONS, FEDERAL REQUIREMENTS (FE9)
  • EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS (NE1)
  • EMISSIONS, CALIFORNIA STATE REQUIREMENTS (YF5)
  • EMISSIONS OVERRIDE, CALIFORNIA (NB8)
  • EMISSIONS OVERRIDE, STATE-SPECIFIC (NB9)
  • EMISSIONS OVERRIDE, FEDERAL (NC7)
  • ENGINE, 2.7L TURBO HIGH-OUTPUT (L3B) – Standard
  • TRANSMISSION, 8-SPEED AUTOMATIC, (COLUMN SHIFTER) ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (MQE) – Standard
  • REAR AXLE, 3.42 RATIO (GU6)
  • ELEVATION PREFERRED EQUIPMENT GROUP includes standard equipment (3VL)
  • TIRES, 275/60R20 ALL-SEASON, BLACKWALL (QAB)
  • TIRES, 275/60R20SL ALL-TERRAIN, BLACKWALL (QAE)
  • SUMMIT WHITE (GAZ)
  • CARDINAL RED (G7C)
  • ONYX BLACK (GBA)
  • STERLING METALLIC (GXD)
  • TITANIUM RUSH METALLIC (G6M)
  • DYNAMIC BLUE METALLIC (GLT)
  • DESERT SAND METALLIC (GTL)
  • DEEP BRONZE METALLIC (GXN)
  • VOLCANIC RED TINTCOAT (GNT)
  • STANDARD PAINT (undefined)
  • SEATS, FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (AZ3) – Standard
  • JET BLACK, CLOTH SEAT TRIM (H0U)
  • AUDIO SYSTEM, 13.4 ” DIAGONAL PREMIUM GMC INFOTAINMENT SYSTEM WITH GOOGLE BUILT IN, INCLUDES COLOR TOUCH-SCREEN, MULTI-TOUCH DISPLAY, AM/FM STEREO Bluetooth streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings (IOK) – Standard
  • ENGINE BLOCK HEATER (K05)
  • LICENSE PLATE KIT, FRONT (VK3)
  • STEERING COLUMN LOCK, ELECTRICAL (Beginning with start of production vehicles will be forced to include (R7N) Not Equipped with Steering Column Lock, which removes Steering Column Lock. See dealer for details.) (N06)
  • NOT EQUIPPED WITH STEERING COLUMN LOCK, SEE DEALER FOR DETAILS (Beginning with start of production, vehicles will be forced to include (R7N) Not Equipped with Steering Column Lock, which removes Steering Column Lock. See dealer for details.) (R7N)
  • SIRIUSXM RADIO ADDITIONAL 9 MONTHS OF THE SIRIUSXM PLATINUM PLAN. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 9 months of listening on the SiriusXM app or online in addition to the 3 months of Platinum Plan trial service that is included in the price of the vehicle. Total service duration is 12 months. Non-Transferrable. Non-Refundable. (PR6)
  • SIRIUSXM RADIO ADDITIONAL 21 MONTHS OF THE SIRIUSXM PLATINUM PLAN. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 21 months of listening on the SiriusXM app or online in addition to the 3 months of Platinum Plan trial service that is included in the price of the vehicle. Total service duration is 24 months. Non-Transferrable. Non-Refundable. (PR7)
  • SIRIUSXM RADIO ADDITIONAL 33 MONTHS OF THE SIRIUSXM PLATINUM PLAN. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 33 months of listening on the SiriusXM app or online in addition to the 3 months of Platinum Plan trial service that is included in the price of the vehicle. Total service duration is 36 months. Non-Transferrable. Non-Refundable. (PR8)
  • ONSTAR VEHICLE INSIGHTS – 1 YEAR OF SERVICE. Includes 12 months of OnStar Vehicle Insights service. OnStar Vehicle Insights provides fleet managers and drivers the tools and data they need to help maximize fleet productivity and help maximize fleet’s operational efficiencies. OnStar Vehicle Insights relays real-time vehicle data like vehicle location, driver performance information and more. Eligible customers must sign up for an account at www.onstarvehicleinsights.com in order to take advantage of this 12 months offer. Requires an active connected vehicle services plan. The OnStar Vehicle Insights service is included in the price of the vehicle. Total service duration is 12 months. Non-Transferrable. Non-Refundable. (P0V)
  • ONSTAR VEHICLE INSIGHTS – 2 YEARS OF SERVICE. Includes 24 months of OnStar Vehicle Insights service. OnStar Vehicle Insights provides fleet managers and drivers the tools and data they need to help maximize fleet productivity and help maximize fleet’s operational efficiencies. OnStar Vehicle Insights relays real-time vehicle data like vehicle location, driver performance information and more. Eligible customers must sign up for an account at www.onstarvehicleinsights.com in order to take advantage of this 24 months offer. Requires an active connected vehicle services plan. The OnStar Vehicle Insights service is included in the price of the vehicle. Total service duration is 24 months. Non-Transferrable. Non-Refundable. (P0W)
  • ONSTAR VEHICLE INSIGHTS – 3 YEARS OF SERVICE. Includes 36 months of OnStar Vehicle Insights service. OnStar Vehicle Insights provides fleet managers and drivers the tools and data they need to help maximize fleet productivity and help maximize fleet’s operational efficiencies. OnStar Vehicle Insights relays real-time vehicle data like vehicle location, driver performance information and more. Eligible customers must sign up for an account at www.onstarvehicleinsights.com in order to take advantage of this 36 months offer. Requires an active connected vehicle services plan. The OnStar Vehicle Insights service is included in the price of the vehicle. Total service duration is 36 months. Non-Transferrable. Non-Refundable. (P0X)
  • ONSTAR VEHICLE INSIGHTS – 4 YEARS OF SERVICE. Includes 48 months of OnStar Vehicle Insights service. OnStar Vehicle Insights provides fleet managers and drivers the tools and data they need to help maximize fleet productivity and help maximize fleet’s operational efficiencies. OnStar Vehicle Insights relays real-time vehicle data like vehicle location, driver performance information and more. Eligible customers must sign up for an account at www.onstarvehicleinsights.com in order to take advantage of this 48 months offer. Requires an active connected vehicle services plan. The OnStar Vehicle Insights service is included in the price of the vehicle. Total service duration is 48 months. Non-Transferrable. Non-Refundable. (P0Y)
  • ONSTAR VEHICLE INSIGHTS – 5 YEARS OF SERVICE. Includes 60 months of OnStar Vehicle Insights service. OnStar Vehicle Insights provides fleet managers and drivers the tools and data they need to help maximize fleet productivity and help maximize fleet’s operational efficiencies. OnStar Vehicle Insights relays real-time vehicle data like vehicle location, driver performance information and more. Eligible customers must sign up for an account at www.onstarvehicleinsights.com in order to take advantage of this 60 months offer. Requires an active connected vehicle services plan. The OnStar Vehicle Insights service is included in the price of the vehicle. Total service duration is 60 months. Non-Transferrable. Non-Refundable. (P0Z)
  • ONSTAR ADDITIONAL 21 MONTHS OF ONSTAR FLEET SAFETY AND SECURITY. Provides 21 months of Fleet Safety and Security service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Safety and Security service duration is 24 months. (P0J)
  • ONSTAR ADDITIONAL 33 MONTHS OF ONSTAR FLEET SAFETY AND SECURITY. Provides 33 months of Fleet Safety and Security service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Safety and Security service duration is 36 months. (P0K)
  • ONSTAR ADDITIONAL 45 MONTHS OF ONSTAR FLEET SAFETY AND SECURITY. Provides 45 months of Fleet Safety and Security service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Safety and Security service duration is 48 months. (P0L)
  • ONSTAR ADDITIONAL 21 MONTHS OF ONSTAR FLEET DRIVER REMOTE ACCESS. Provides 21 months of Fleet Driver Remote Access service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Driver Remote Access service duration is 24 months. (P0M)
  • ONSTAR ADDITIONAL 33 MONTHS OF ONSTAR FLEET DRIVER REMOTE ACCESS. Provides 33 months of Fleet Driver Remote Access service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Driver Remote Access service duration is 36 months. (P0N)
  • ONSTAR ADDITIONAL 45 MONTHS OF ONSTAR FLEET DRIVER REMOTE ACCESS. Provides 45 months of Fleet Driver Remote Access service in addition to the 3 months of complimentary coverage that is included in the price of the vehicle. Total OnStar Fleet Driver Remote Access service duration is 48 months. (P0O)
  • ONSTAR ADDITIONAL 9 MONTHS OF ONSTAR ASSURANCE FOR TIER3 FLEETS. Provides 9 months of OnStar Assurance service in addition to the 3 months of complimentary Safety & Security coverage that is included in the price of the vehicle. Total Fleet OnStar Safety & Security service duration is 3 months and 9 months of OnStar Assurance. (P1R)
  • ONSTAR ADDITIONAL 21 MONTHS OF ONSTAR ASSURANCE FOR TIER3 FLEETS. Provides 21 months of OnStar Assurance service in addition to the 3 months of complimentary Safety & Security coverage that is included in the price of the vehicle. Total Fleet OnStar Safety & Security service duration is 3 months and 21 months of OnStar Assurance. (P1S)
  • ONSTAR ADDITIONAL 33 MONTHS OF ONSTAR ASSURANCE FOR TIER3 FLEETS. Provides 33 months of OnStar Assurance service in addition to the 3 months of complimentary Safety & Security coverage that is included in the price of the vehicle. Total Fleet OnStar Safety & Security service duration is 3 months and 33 months of OnStar Assurance. (P1T)
  • ONSTAR ADDITIONAL 45 MONTHS OF ONSTAR ASSURANCE FOR TIER3 FLEETS. Provides 45 months of OnStar Assurance service in addition to the 3 months of complimentary Safety & Security coverage that is included in the price of the vehicle. Total Fleet OnStar Safety & Security service duration is 3 months and 45 months of OnStar Assurance. (P1U)
  • ONSTAR ADDITIONAL 57 MONTHS OF ONSTAR ASSURANCE FOR TIER3 FLEETS. Provides 57 months of OnStar Assurance service in addition to the 3 months of complimentary Safety & Security coverage that is included in the price of the vehicle. Total Fleet OnStar Safety & Security service duration is 3 months and 57 months of OnStar Assurance. (R7Z)
  • SHIP THRU, PRODUCED AND SHIPPED TO ANCHORAGE VDC THEN TO TK SERVICES AND RETURNED TO ANCHORAGE VDC FOR SHIPPING TO FINAL DESTINATION (TVY)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO BRAND FX BODY COMPANY AND RETURNED TO FT. WAYNE ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (A4I)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO ECO VEHICLE SYSTEMS, UNION CITY, INDIANA. RETURNED TO FT. WAYNE ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (TBR)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO ADRIAN STEEL IN WENTZVILLE, MO. RETURNED TO WENTZVILLE ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (BI7)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO READING TRUCK EQUIPMENT, PONTIAC MI, AND RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (CJD)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO MONROE TRUCK EQUIPMENT, FLINT, MI. RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (TCM)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO FT. WAYNE FLEET EQUIPMENT IN ROANOKE, IN. RETURNED TO FT. WAYNE ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (TRE)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO KNAPHEIDE TRUCK EQUIPMENT, FLINT, MI AND RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (VDE)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO CANFIELD EQUIPMENT IN WARREN, MI. RETURNED TO LANSING DELTA ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (ANO)
  • SHIP THRU, PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO NBC TRUCK EQUIPMENT, FLINT, MI RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION. (VCM)
2023 GMC Sierra 1500 Consumer Information
2023 GMC Sierra 1500 Technical Specifications
  • Vehicle Name – GMC Sierra 1500
  • Body Style – Double Cab Pickup
  • Body Code – E63
  • Drivetrain – Four Wheel Drive
  • Trans Order Code – MI2 (MI2), MHS (MHS), MHT (MHT), MQB (MQB), MQC (MQC), MQE
  • Trans Type – 10 (MHS,MHT,MQB,MQC,MI2), 8
  • Trans Description Cont. – Automatic
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 4.69 (MQB), 4.56
  • Second Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 2.98 (MQB), 2.97
  • Third Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 2.15 (MQB), 2.08
  • Fourth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 1.8 (MQB), 1.69
  • Fifth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 1.52 (MQB), 1.27
  • Sixth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 1.28 (MQB), 1.00
  • Seventh Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 1.00 (MQB), 0.85
  • Eighth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 0.85 (MQB), 0.65
  • Ninth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 0.69 (MQB)
  • Tenth Gear Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 0.63 (MQB)
  • Reverse Ratio (:1) – – TBD – (MHS,MHT,MQC,MI2), 4.86 (MQB), 3.82
  • Clutch Size –
  • Trans Power Take Off –
  • Trans PTO Access –
  • Transfer Case Model – Magna MP3023/4 (NQH), Magna
  • Transfer Case Gear Ratio (:1), High – 1.00
  • Transfer Case Gear Ratio (:1), Low – 2.69 (NQH)
  • Transfer Case Power Take Off –
  • Passenger Capacity – 5 (5Y1,A50), 6
  • Front Head Room – 43.03 in
  • Front Leg Room – 44.53 in
  • Front Shoulder Room – 66.02 in
  • Front Hip Room – 61.18 in
  • Second Head Room – 39.88 in
  • Second Leg Room – 35.24 in
  • Second Shoulder Room – 64.88 in
  • Second Hip Room – 60.24 in
  • Gross Axle Wt Rating – Front – 3800 lbs
  • Gross Axle Wt Rating – Rear – 4150 lbs (NHT-R,NHT-F), 3800 lbs
  • Curb Weight – Front – 2879 lbs
  • Curb Weight – Rear – 1940 lbs
  • Gross Vehicle Weight Rating Cap – 7100 lbs (C5Y), 7300 lbs (C6A), 7200 lbs (C5Z), 7000 lbs
  • Gross Combined Wt Rating – 15000 lbs (L84-R,L84-F), 14500 lbs
  • Fuel Economy Est-Combined – 18 (2022) undefined, – TBD – undefined (LZ0-F,LZ0-R), 17 (2022) undefined (L84-R,L84-F)
  • EPA Fuel Economy Est – City – 17 (2022) MPG, – TBD – MPG (LZ0-F,LZ0-R), 16 (2022) MPG (L84-R,L84-F)
  • EPA Fuel Economy Est – Hwy – 20 (2022) MPG, – TBD – MPG (LZ0-F,LZ0-R)
  • Tons/yr of CO2 Emissions @ 15K mi/year – 9.8 (2022) undefined, – TBD – undefined (LZ0-F,LZ0-R), 10.4 (2022) undefined (L84-R,L84-F)
  • Dead Weight Hitch – Max Trailer Wt. – 5000 lbs
  • Dead Weight Hitch – Max Tongue Wt. – 500 lbs
  • Wt Distributing Hitch – Max Trailer Wt. – 8900 lbs
  • Wt Distributing Hitch – Max Tongue Wt. – 890 lbs
  • Fifth Wheel Hitch – Max Trailer Wt. – 8800 lbs
  • Fifth Wheel Hitch – Max Tongue Wt. – 2200 lbs
  • Maximum Trailering Capacity – – TBD – undefined (LZ0-F,LZ0-R), 8900 undefined
  • Engine Type – Turbocharged Diesel I6 (LZ0-F,LZ0-R), Turbocharged Gas I4, Gas V8 (L84-R,L84-F)
  • Fuel System – Direct Injection
  • Engine Order Code – LZ0 (LZ0-F,LZ0-R), L84 (L84-R,L84-F), L3B
  • Displacement – 3.0L/- TBD – (LZ0-F,LZ0-R), 5.3L/325 (L84-R,L84-F), 2.7L/166
  • SAE Net Horsepower @ RPM – – TBD – (LZ0-F,LZ0-R), 355 @ 5600 (L84-R,L84-F), 310 @ 5600
  • SAE Net Torque @ RPM – – TBD – (LZ0-F,LZ0-R), 383 @ 4100 (L84-R,L84-F), 430 @ 3000
  • Engine Oil Cooler – Yes ((L84-R,L84-F),L87)
  • Cold Cranking Amps @ 0° F (Primary) – 850 (LZ0-F,LZ0-R), 730
  • Cold Cranking Amps @ 0° F (2nd) –
  • Maximum Alternator Capacity (amps) – 170 (KW7), 220
  • Maximum Alternator Watts –
  • Total Cooling System Capacity – – TBD – qts
  • Frame Type – Hydroformed
  • Suspension Type – Front – Independent
  • Suspension Type – Rear – Solid Axle
  • Spring Capacity – Front – 3800 lbs
  • Spring Capacity – Rear – 4150 lbs (NHT-R,NHT-F), 3850 lbs
  • Axle Type – Front – – TBD –
  • Axle Type – Rear – – TBD –
  • Axle Capacity – Front – 3800 lbs
  • Axle Capacity – Rear – 4150 lbs (NHT-R,NHT-F), 3800 lbs
  • Axle Ratio (:1) – Front – 3.73 (GT4), 3.23 (GU5), 3.42
  • Axle Ratio (:1) – Rear – 3.73 (GT4), 3.23 (GU5), 3.42
  • Shock Absorber Diameter – Front – – TBD – mm
  • Shock Absorber Diameter – Rear – – TBD – mm
  • Stabilizer Bar Diameter – Front – 1.30 in
  • Stabilizer Bar Diameter – Rear –
  • Front Tire Order Code – QAE (QAE), QAB
  • Rear Tire Order Code – QAE (QAE), QAB
  • Spare Tire Order Code – QAQ
  • Front Tire Size – 275/60R20SL (QAE), 275/60R20
  • Rear Tire Size – 275/60R20SL (QAE), 275/60R20
  • Spare Tire Size – 255/80R17SL
  • Front Tire Capacity – 3800 lbs
  • Rear Tire Capacity – 3800 lbs, 4150 lbs (C6A)
  • Spare Tire Capacity – – TBD – lbs
  • Revolutions/Mile @ 45 mph – Front – N/A Rev/Mile
  • Revolutions/Mile @ 45 mph – Rear – N/A Rev/Mile
  • Revolutions/Mile @ 45 mph – Spare – N/A Rev/Mile
  • Front Wheel Size – 20 x 9 in
  • Rear Wheel Size – 20 x 9 in
  • Spare Wheel Size – 17 x 8 in
  • Front Wheel Material – Steel (RD6), Aluminum
  • Rear Wheel Material – Steel (RD6), Aluminum
  • Spare Wheel Material – Steel
  • Steering Type – Electric Rack & Pinion
  • Steering Ratio (:1), On Center – – TBD –
  • Steering Ratio (:1), At Lock – – TBD –
  • Turning Diameter – Curb to Curb – 46.9 ft
  • Turning Diameter – Wall to Wall – N/A ft
  • Brake Type – Pwr
  • Brake ABS System – 4-Wheel
  • Brake ABS System (Second Line) –
  • Disc – Front (Yes or ) – Yes
  • Disc – Rear (Yes or ) – Yes
  • Front Brake Rotor Diam x Thickness – 13.5 x 1.18 in
  • Rear Brake Rotor Diam x Thickness – 13.6 x 0.79 in
  • Drum – Rear (Yes or ) –
  • Rear Drum Diam x Width –
  • Fuel Tank Capacity, Approx – – TBD – gal (LZ0-F,LZ0-R), 24 gal
  • Aux Fuel Tank Capacity, Approx –
  • Fuel Tank Location – – TBD –
  • Aux Fuel Tank Location –
  • Wheelbase – 147.44 in
  • Length, Overall – 231.94 in
  • Width, Max w/o mirrors – 81.24 in
  • Height, Overall – 75.63 in
  • Overhang, Front – – TBD – in
  • Overhang, Rear w/o bumper – – TBD – in
  • Front Bumper to Back of Cab – – TBD – in
  • Cab to Axle – – TBD – in
  • Cab to End of Frame – – TBD – in
  • Ground to Top of Load Floor – – TBD – in
  • Ground to Top of Frame – – TBD – in
  • Frame Width, Rear – – TBD – in
  • Ground Clearance, Front – 8.09 in
  • Ground Clearance, Rear – 8.09 in
  • Cargo Box Length @ Floor – 79.44 in
  • Cargo Box Width @ Top, Rear – – TBD – in
  • Cargo Box Width @ Floor – 71.4 in
  • Cargo Box Width @ Wheelhousings – 50.63 in
  • Cargo Box (Area) Height – 22.4 in
  • Tailgate Width – – TBD – in
  • Cargo Volume – 71.7 ft³
  • Ext’d Cab Cargo Volume – – TBD – ft³
